PROMOTION

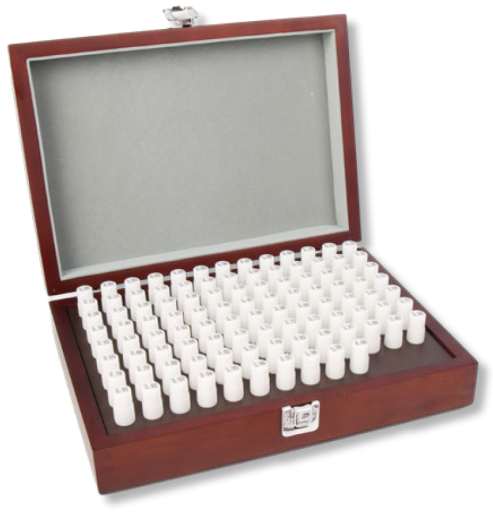

Pin gauge sets Tol.±0.001mm in wooden box Tungsten carbide DIN 2269 Ø 0,50-1,00/50/0,01mm
Nominal size:
Ø 0,50-1,00mm
|
Step:
0,01mm
|
Tolerance:
±0,001mm
DIN 2269
Hardness 90-93 HRA
Larger than Ø 1.5mm with chamfer
Nominal size marked from Ø 2.0mm on pin gauges
Including additional plastic sleeves per pin with marking of nominal size
Delivered in wooden box
! Other set compositions as well as pin gauge sets with handles on request.
€885.00*
PROMOTION
Setting ring gauges DIN 2250-C tungsten carbide Special sizes Ø 5,000-14,999/0,001mm
Nominal size:
Ø 5,000-14,999mm
|
Step:
0,001mm
DIN 2250-C
Gauge body in steel, measuring face insert in tungsten carbide
Manufacturing tolerance JS4
All nominal diameters in 0,001mm step
Delivered in individual packages
! Larger nominal sizes as well as setting ring gauges for pneumatic measuring acc. DIN 2250-B on request.
! Order notice - Please enter exact nominal diameter, e.g. Ø 10,282mm or Ø 37,58mm
€199.00*
PROMOTION
Vernier calipers ULTRA active inox matt in box Without points, with fine adjustment 1500x200-1/20mm
Jaw length:
200mm
|
Measuring range:
1500mm / 60 inch
|
Points:
Without
|
Reading:
1/20mm / 1/128 inch
DIN 862 up to jaw length 200mm, from 250mm according to works standard
Locking screw
Hardened stainless steel
Satin chromed vernier and scale
Delivered in a case
1895 1..: Without points
1896 1..: With points
! Vernier 1/50mm on request.
€1,159.00*
PROMOTION
Measuring cylinders 90° hardened special steel Ø60x160mm
Diameter:
60mm
|
Height:
160mm
|
Material:
Special steel
Works standard
Hardened special steel
Machined base and jacket surface
with handle
Delivered in individual packages
1631 1..: Hardened special steel
1633 1..: Storage box
! Other sizes and higher accuracy grades on request.
€366.00*
PROMOTION
Centering devices CENTRICATOR C0 S MICHAEL DECKEL including probes, clamping shaft Ø 16mm Ø 2-125 / Ø 0-125 / 0,005mm
Reading:
0,005mm
|
Work range inside:
Ø 2-125mm
|
Work range outside:
Ø 0-125mm
Works standard
Horizontal and vertical application
Fixed clamping shaft Ø 16mm
Integrated non-turning dial gauge
Delivered in box
Contents:
Centering instrument
String holder
Magnet holder
Straight probe, ball Ø 5mm
Bent probe, ball Ø 5mm
Screwdriver SW 3
Operating manual
! Additional probes are required for the specified work ranges, see accessories.
! Angular probes Ø 5mm, accessories set with 4 probes for CENTRICATOR on request.
€1,530.00*
PROMOTION
incl. packing
Granite measuring plates DIN 876/00 incl. calibration certificate and packing 800x600x80mm
Dimension:
800x600x80mm
|
Grade:
00
DIN 876
Made from finest natural granite with a particularly homogeneous structure
Measuring surface diamond lapped, corrosion-resistant and acid-resistant
Finely grounded outer surface
Hardness 6–7 on Moh’s scale
Bottom surface with statically correct mounted steel ball inserts as bearing points
Accuracy:
The final machining takes place in the climate room at a constant temperature and humidity.
For final inspection, measuring devices are used, which are traceable to national and international calibration laboratories.
1500 1..: Grade 000 highest precision for laboratory
1501 1..: Grade 00 very high precision for control room
1502 1..: Grade 0 high precision for production
1505 1..: Grade 1 high precision for workshop and production
Delivered with steel ball inserts and calibration certificate
! Plate thickness for T-slots, min. 100mm.
! Other sizes, plate thicknesses, higher accuracy grades and special versions according to drawing on request.
€915.00*
PROMOTION
incl. packing

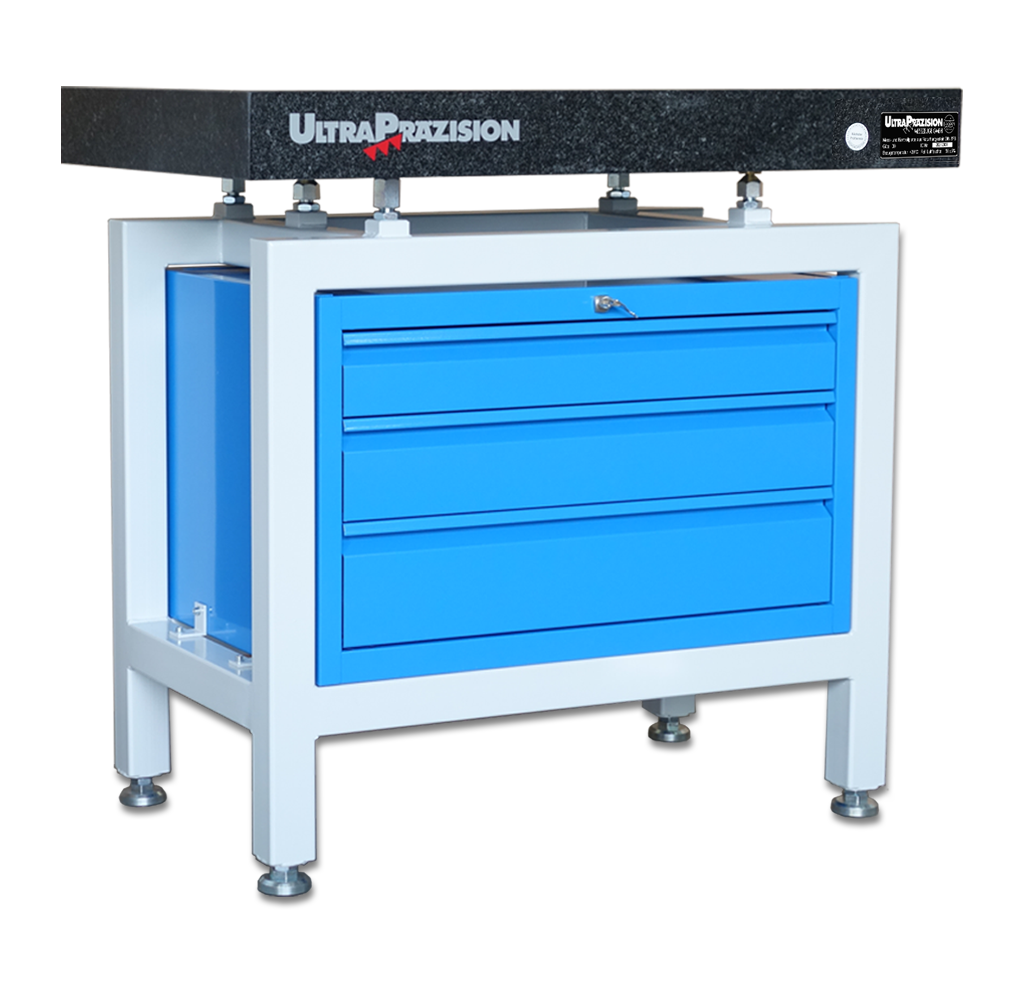

Granite measuring plates DIN 876/0 incl. base tool cabinet, calibration certificate and packing 1000x630x100mm
Dimension:
1000x630x100mm
|
Grade:
0
|
Type:
With tool cabinet
DIN 876
made from finest natural granite with a particularly homogeneous structure
Measuring surface diamond lapped, corrosion-resistant and acid-resistant
Finely grounded outer surface
Hardness 6–7 on Moh’s scale
Delivered including calibration certificate and packing
Accuracy:
The final machining takes place in the climate room at a constant temperature and humidity.
For final inspection, measuring devices are used, which are traceable to national and international calibration laboratories.
1503 2..: Grade 00 very high precision for control room, with base tool cabinet
1503 1..: Grade 0 high precision for workshop, with base tool cabinet
1504 2..: Grade 00 very high precision for control room, with stand
1504 1..: Grade 0 high precision for workshop, with stand
Base tool cabinet:
Stable square pipe with drawer module
3 drawers with telescope inserts
Color drawer module RAL 5015
Including levelling screw and tilt protection
Height adjustable base
Construction dimensions for approx. 900 - 950mm working height
Stand
Stable square pipe
Incl. levelling screw and tilt protection
Construction dimensions for approx. 900 - 950mm working height
Color stand RAL 7035
! Plate thickness for T-slots min. 100mm.
! Other sizes, plate thicknesses, higher accuracy grades and special versions according to drawing on request.
€2,701.00*
PROMOTION

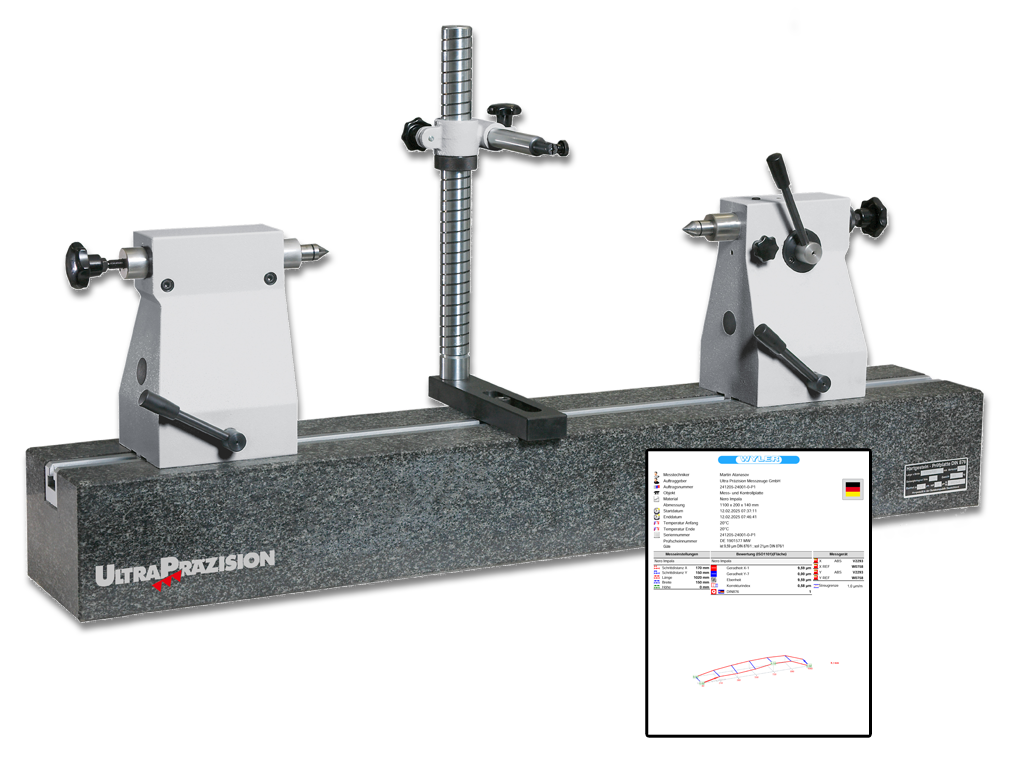

Concentricity testers ULTRA active with granite bench DIN 876/1, without V blocks 200/650/1100x200mm (14H7)
Center height:
200mm
|
Center width:
650mm
|
V blocks:
Without
DIN 876
Finely ground measuring faces, grade 1
Left tailstock with fixed centre sleeve
Right tailstock with movable and lockable centre sleeve
Centre points 60°, MK2
Measuring stand with fine adjustment
Dial mounting hole Ø 8mm
Maximum load tailstock pair 40 kg
1554 1..: Tailstocks without V blocks
1555 1..: Tailstocks with V blocks, hardened
Delivered in individual packages, incl. works
calibration certificate for granite bench
! Additional stands for multi-point measurement see Accessories menu.
€4,060.00*
PROMOTION
Concentricity testers special cast iron DIN876/1 Without V blocks 50/200/350x110mm (10H7)
Center height:
50mm
|
Center width:
200mm
|
V blocks:
Without
DIN 876
Finely ground measuring face, grade 1
Left tailstock with fixed centre sleeve
Right tailstock with movable centre sleeve
Centre points 60°
Base plate with 2 T-slots
Stand with fine adjustment, dial mounting hole Ø 8mm
1560 1..: Tailstocks without V blocks
1561 1..: Tailstocks with V blocks
Delivered in individual packages
! Painting of cast iron components with different RAL colours on request.
! Tailstock pair without base plate on request.
! Other centre points on request.
€876.00*
PROMOTION

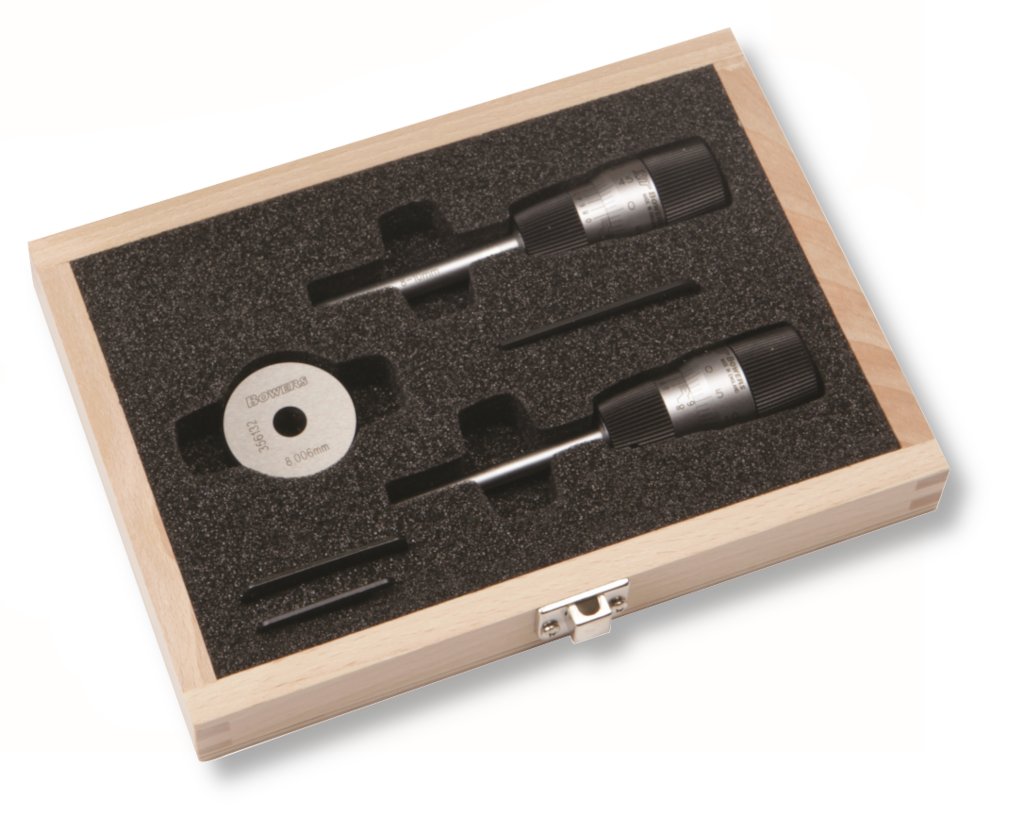

Internal micrometer sets, 3-point XTA MICRO in box including setting rings and UKAS calibration certificate 6-10/0,002/58mm
Measuring range:
6-10mm
|
Reading:
0,002mm
DIN 863
Satin chrome reading parts
For measuring ranges < 20mm XTA MICRO will be delivered
Tungsten carbide-tipped measuring faces (< 12.5mm with steel measuring faces hardened)
Spindle pitch 0.5mm
Sturdy ratchet
Delivered in a case, including setting rings and UKAS calibration certificate
Contents:
2 pieces internal micrometers (1 piece of each measuring range 6-8 / 8-10mm)
1 piece setting ring Ø 8mm
€647.00*
ULTRA PRÄZISION MESSZEUGE GMBH - Your competent partner for dimensional metrology!
Welcome to the pages of ULTRA PRÄZISION MESSZEUGE GMBH - your specialist trade partner for measuring tools and gauges. We offer you a unique range of gauges and dimensional standards, measuring tools, testing equipment, measuring plates, alignment tools, and components for clamping technology. ULTRA measuring tools and gauges have stood for the highest precision and excellent quality for over 135 years.
The ULTRA Shop is the clever solution for your daily procurement!
In the ULTRA Shop, we offer you an extensive range of products in the field of metrology 365 days a year, which also meets the highest quality standards. In addition to our ULTRA brand products, we stock a large inventory of high-quality products from well-known manufacturers.
Benefit from our excellent prices and delivery capability for: BOWERS XT, XTD, XTH 3-point micrometers and measuring instruments, DEMM / Sylvac carbon calipers and testing equipment, FISSO measuring stands, KÄFER dial indicators, KRÖPLIN dial caliper gauges, SCHWENK precision bore gauges, LEITECH thread plug gauges, and PESOLA fine spring balances.
Use our strong brands for your business success!
Our specified online
shop
offers you over 10.000 products in the following categories:
We are not only available online, but also in real life!
Our headquarters are located in Glattbach near Aschaffenburg / Germany. If you are looking for an expert contact person for solutions in the field of dimensional metrology, we are here for you and offer you the optimal solution for every application. With us, you can discuss all questions about metrology with experienced and knowledgeable experts - in person, by phone, or by email. We provide honest and competent advice and always have a genuine interest in your requirements.
It does not work without the right service!
If necessary, you can conveniently configure our measuring tools and gauges in the shop with a factory calibration certificate, DAkkS calibration certificate and individual engraving (e.g. internal ID numbers).
If you cannot find the suitable products in our shop or have a specific need for gauges, precision parts, or test fixtures according to your drawings, do not hesitate to send us your inquiries via our contact form
Our sales team will gladly check our manufacturing capabilities and provide you with an attractive offer.
