Concentricity testers SIMMY M with motor drive, with rollers, Accuracy 0,002mm Ø1,5-50/220/350x118x140mm
Illustration similar ©ULTRA Germany
€5,975.00*
Custom price after Login
Article number:
1559551
Delivery time
approx. 6 weeks
Shipping method:
Parcel delivery service
Weight:
9kg
EAN / GTIN:
4066918059956
Manufacturer number:
00884
Customs code:
90318080
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |
Concentricity testers SIMMY M with motor drive, with rollers, Accuracy 0,002mm
- Works standard
- For checking concentricity and wobble
- Concentricity accuracy 0.002mm
- Precision rollers Ø30mm with groove made of hardened tool steel
- Aluminium housing, anodized
- Hard chromed steel bars for measuring stand sliding
- Spring loaded work piece clamping system
- Work piece anvil adjustable in length and height
- 2 measuring stands for dial test indicators, mounting hole Ø 8mm
Delivered in individual packages without dial test indicators
Functions:

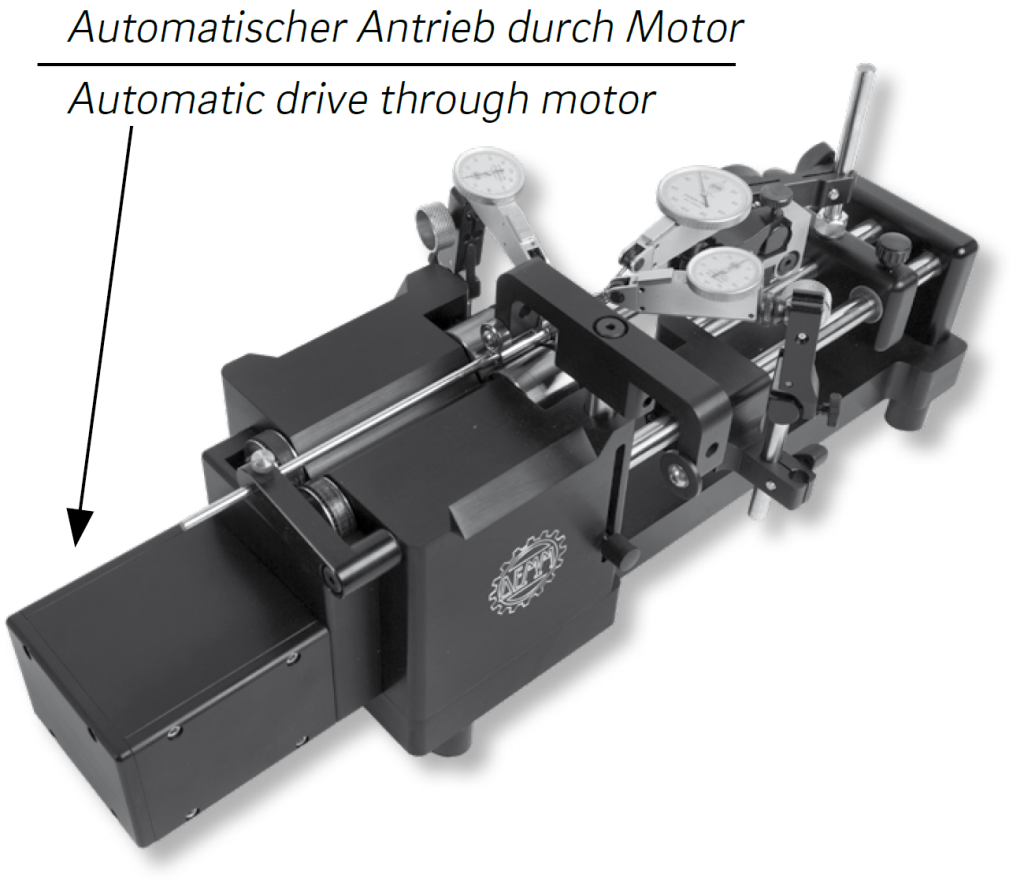

- Automatic drive through motor
- Adjustable rotation speed from 0 to 24 revolutions per minute
- Clockwise or anti-clockwise
- Rotation from 0° to 60°
- Power supply input 220VAC, output 24VDC direct current
| Concentricity testers SIMMY M with motor drive, with rollers, Accuracy 0,002mm | |
|---|---|
| Size: | Ø1,5-50/220/350x118x140mm |
| Article number: | 1559551 |
| Brand: | DEMM |
| Manufacturer number: | 00884 |
| Weight: | 9kg |
