                        Digital universal comparative measuring instruments in box MINI DIGI PLATON CARBON for inside and outside measurements
- Works standard
- Protection class IP54, Sylvac System
- Carbon fibre bar, guiding elements made of chrome steel
- Extremely low weight, high strength of shape
- Large LCD display, reading 0.01mm
- Locking screw

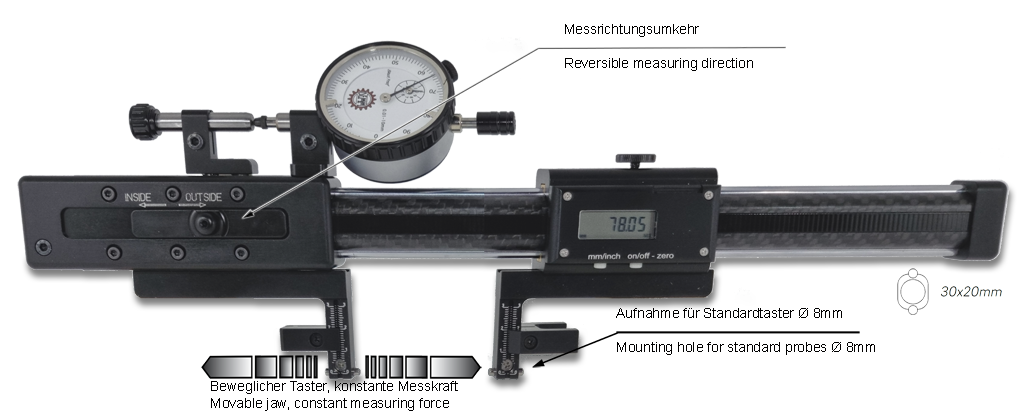

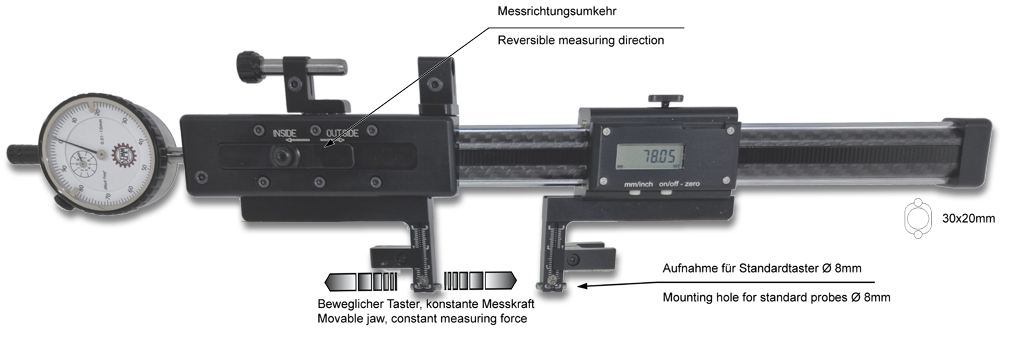

- Reversible measuring direction
- Measuring path max. 20mm
- Measuring inserts free movable due to height-adjustable depth stop which assures high precision measurements
- Interchangeable measuring inserts
- Dial gauge reading 0.01mm
- Adjustable tolerance marks
- Dial mounting hole Ø 8mm
Delivered in a case incl. dial gauge, depth stop and probe pair shaft Ø 3mm R 1,5mm
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Preset function ±
- Hold function
- Data output Opto
Applications:

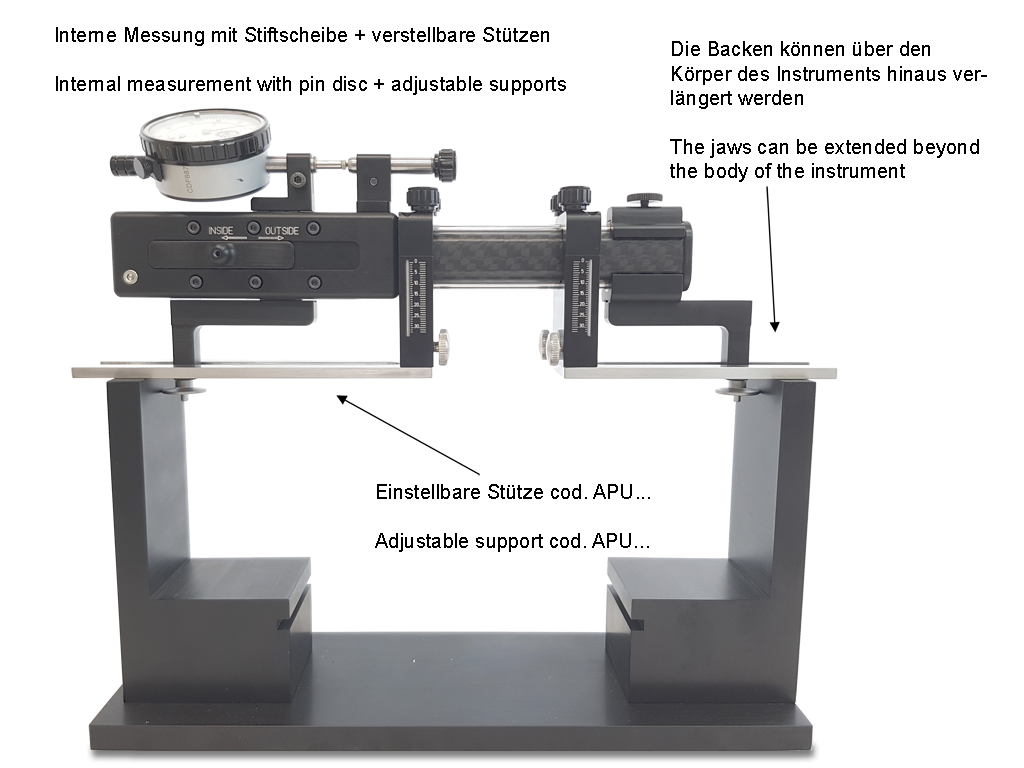

- Inside and outside measurements, with special measuring inserts also in slots and recesses
- All standard measuring inserts with connection thread M2.5 or shaft Ø 3.5mm can be mounted with measuring arms
- Thread measurements with thread inserts shaft Ø 3.5mm
- Gear tooth measurements with measuring balls in holder and adaptor bolts
Operation:
- The setting of the instrument will be made by using for example a Ø 50mm setting ring gauge, the digital display will be preset to the value 50mm and the dial gauge will be adjusted to 0 (reversing point!).
- By sliding the right jaw (electronic device) you can now preset each value up to the complete measuring range of the instrument.
- The deviation of your work piece, in comparison to your preset value at your digital display, will be read at the dial gauge in 1/100mm (reversing point!).
Advantage:
- One setting master is sufficient to adjust the instrument and to be able to use it after that for any size within the instrument capacity.
Digital universal comparative measuring instruments in box MINI DIGI PLATON CARBON for inside and outside measurements

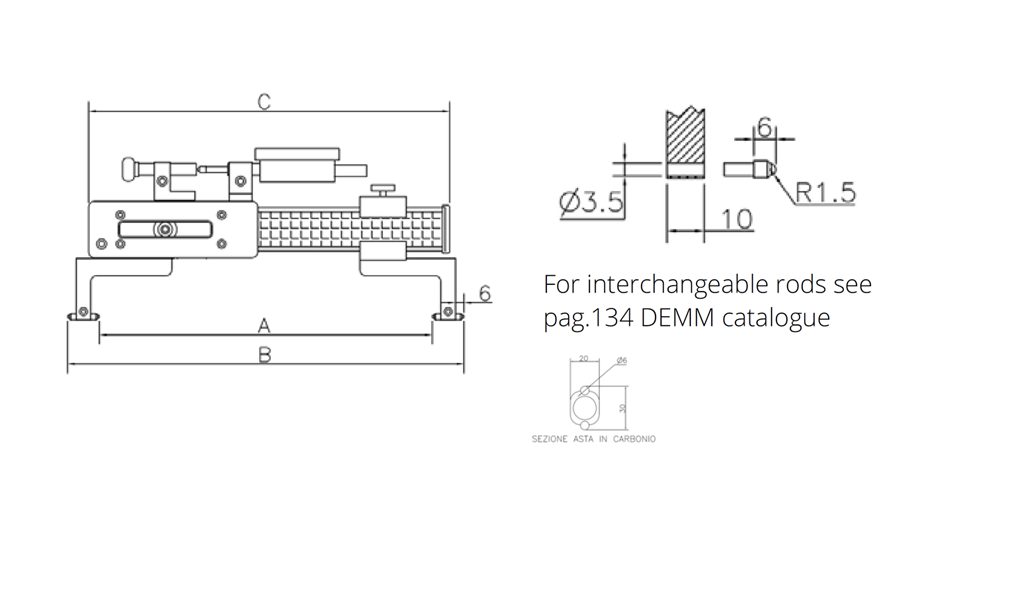

| Size: | 32-500mm / 0-470mm |
|---|---|
| Article no.: | 1398302 |
| Brand: | DEMM |
| Manufacturer number: | 00687 |
| Reading: | 0,01mm / .0005 inch |
| Measuring range: | 32-500mm / 0-470mm |
| Weight: | 1kg |



                                    Probe and depth stops (pair)

for DEMM universal comparative meas. instruments MINI PLATON


                    for DEMM universal comparative meas. instruments MINI PLATON
                                                                    With clamping shaft Ø 8mm
