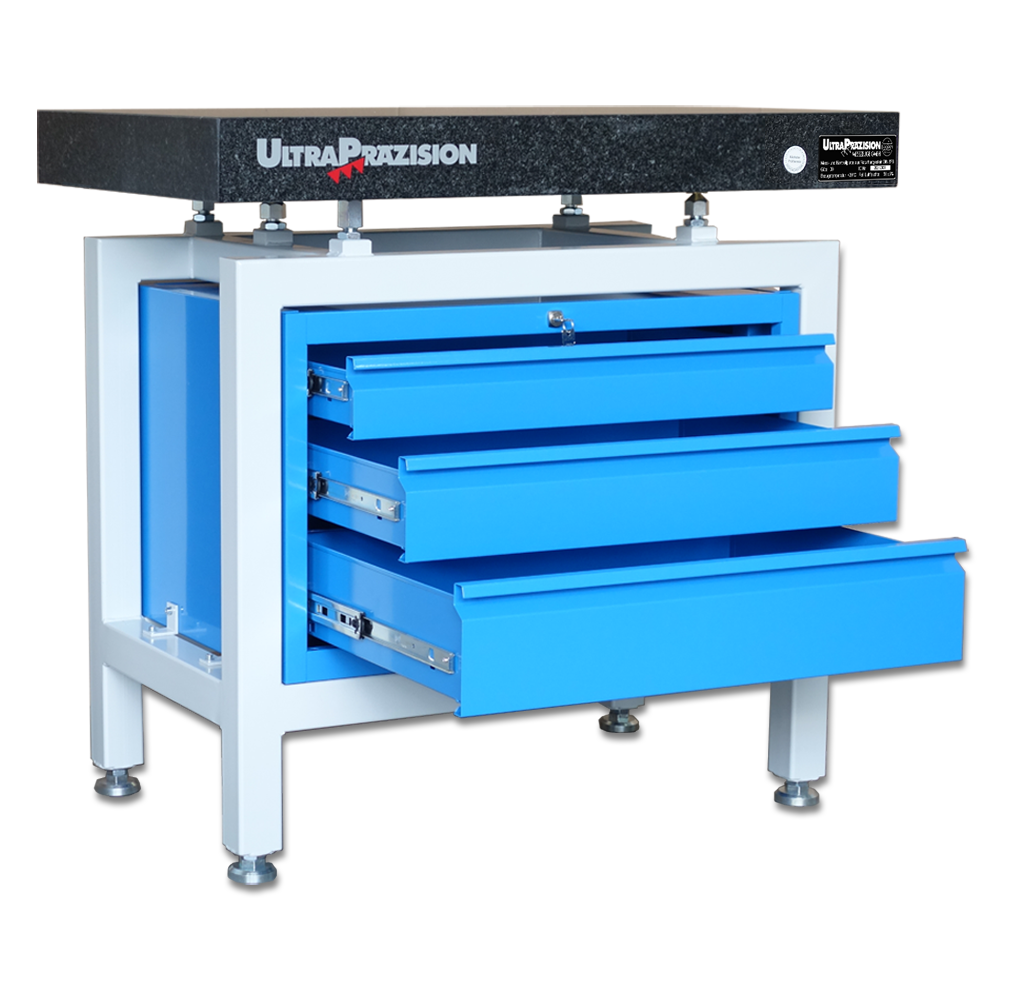

Granite measuring plates DIN 876/0 incl. base tool cabinet, calibration certificate and packing
- DIN 876
- made from finest natural granite with a particularly homogeneous structure
- Measuring surface diamond lapped, corrosion-resistant and acid-resistant
- Finely grounded outer surface
- Hardness 6–7 on Moh’s scale
Delivered including calibration certificate and packing
Accuracy:
The final machining takes place in the climate room at a constant temperature and humidity.
For final inspection, measuring devices are used, which are traceable to national and international calibration laboratories.
1503 2..: Grade 00 very high precision for control room, with base tool cabinet
1503 1..: Grade 0 high precision for workshop, with base tool cabinet
1504 2..: Grade 00 very high precision for control room, with stand
1504 1..: Grade 0 high precision for workshop, with stand

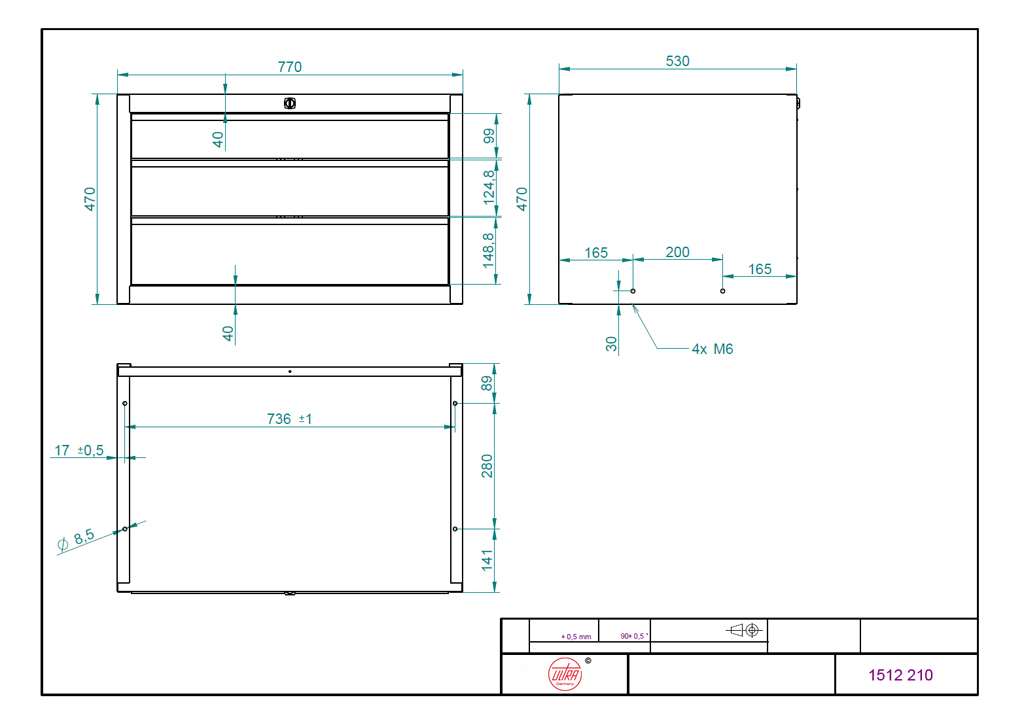

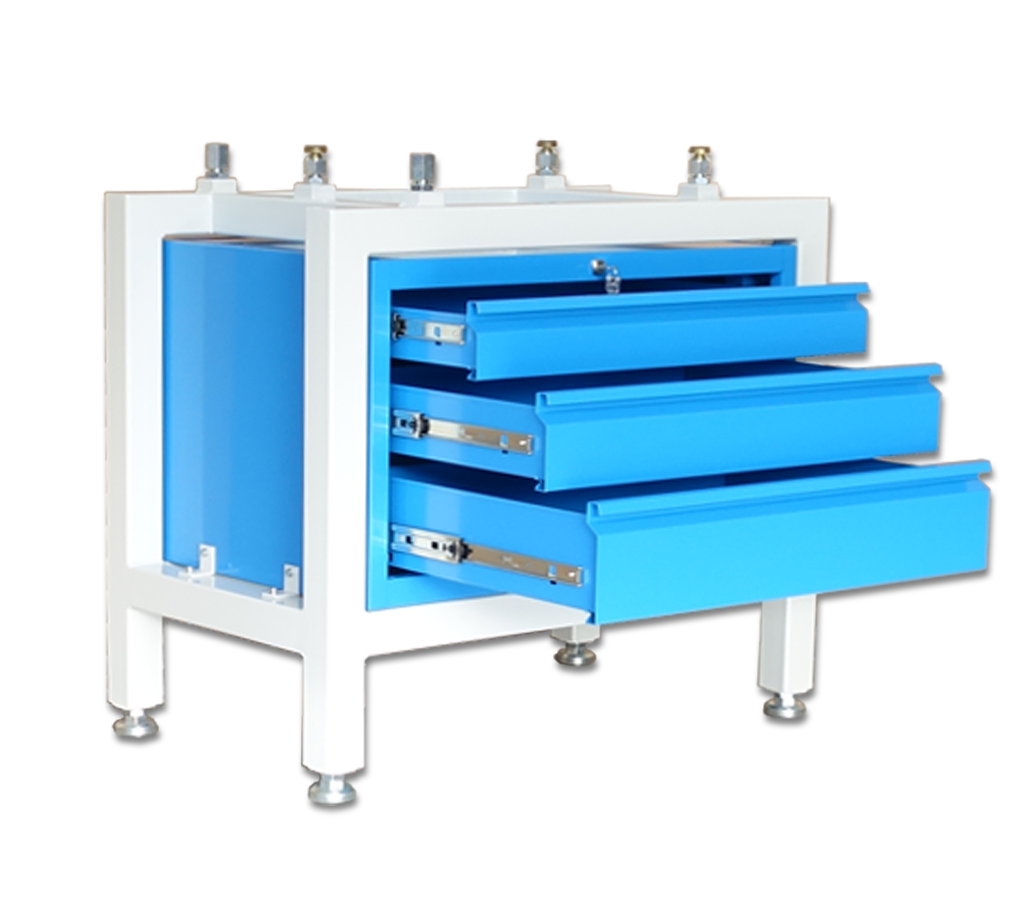

Base tool cabinet:
- Stable square pipe with drawer module
- 3 drawers with telescope inserts
- Color drawer module RAL 5015
- Including levelling screw and tilt protection
- Height adjustable base
- Construction dimensions for approx. 900 - 950mm working height
Stand
- Stable square pipe
- Incl. levelling screw and tilt protection
- Construction dimensions for approx. 900 - 950mm working height
- Color stand RAL 7035
! Plate thickness for T-slots min. 100mm.
! Other sizes, plate thicknesses, higher accuracy grades and special versions according to drawing on request.
Granite measuring plates DIN 876/0 incl. base tool cabinet, calibration certificate and packing
| Size: | 1000x630x100mm |
|---|---|
| Article number: | 1503110 |
| Brand: | ULTRA |
| Dimension: | 1000x630x100mm |
| Grade: | 0 |
| Type: | With tool cabinet |
| Weight: | 240kg |
Alle Varianten
Granite measuring plates DIN 876/0
incl. base tool cabinet, calibration certificate and packing
1000x630x100mm
Article number: 1503110
€2,701.00*
Prices excl. VAT and shipping costs
Custom price after Login
