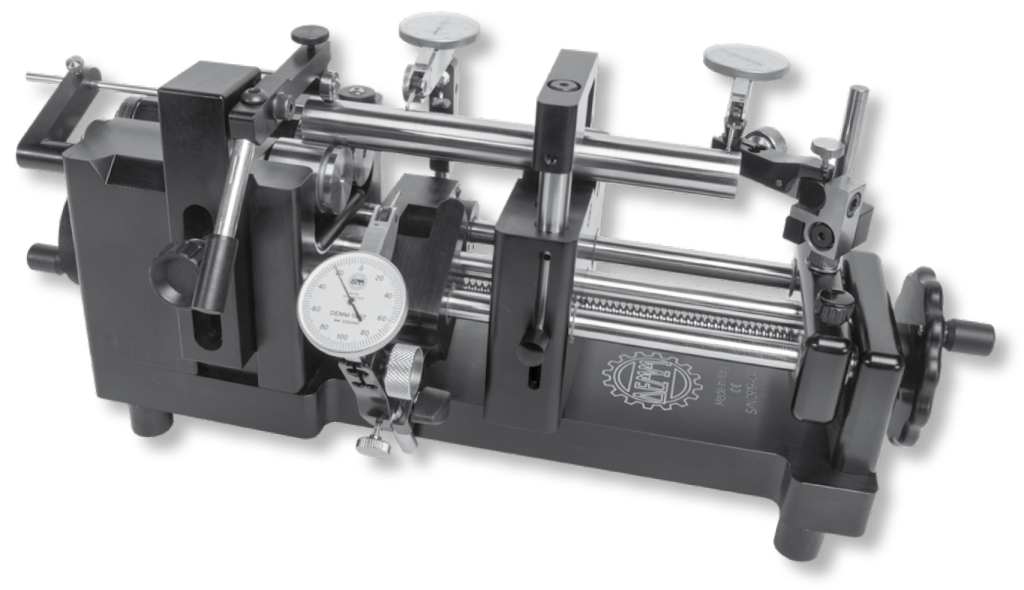

Concentricity testers SIMMY DS with rollers, Accuracy 0,002mm
- Works standard
- For checking concentricity and wobble
- Concentricity accuracy 0.002mm
- Precision rollers Ø30mm with groove made of hardened tool steel

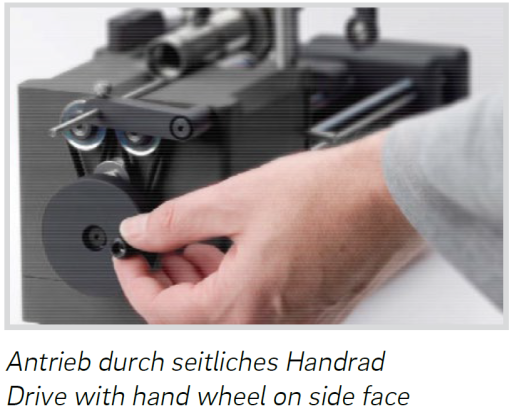

- Drive with hand wheel on side face
- Aluminium housing, anodized

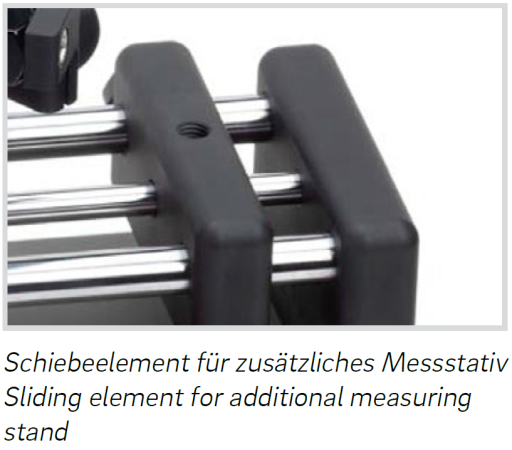

- Hard chromed steel bars for measuring stand sliding
- Spring loaded work piece clamping system
- Work piece anvil adjustable in length and height
- 2 measuring stands for dial test indicators, mounting hole Ø 8mm
1559 511 - 1559 516: Additional rolling block, without height adjustment
1559 521 - 1559 526: Additional rolling block, with height adjustment
Delivered in individual packages without dial test indicators
Concentricity testers SIMMY DS with rollers, Accuracy 0,002mm
| Size: | Ø1,5-50/220/350x118x140mm |
|---|---|
| Article number: | 1559511 |
| Brand: | DEMM |
| Manufacturer number: | 00881 |
| Dimension: | 350x118x140mm |
| Workpiece Ø: | 1,5-50mm |
| Height adjustment: | Without |
| Weight: | 9kg |
Alle Varianten
Concentricity testers SIMMY DS
with rollers, Accuracy 0,002mm
Ø1,5-50/220/350x118x140mm
Article number: 1559511
€4,125.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 6 weeks
Shipping method:
Parcel delivery service
Weight:
9kg
EAN / GTIN:
4066918059833
Manufacturer number:
00881
Customs code:
90318080
