Concentricity testers RLPG 240/1000 with steel base plate, hardened, with roller wheels 120x4/Ø240/1000mm
€6,039.00*
Custom price after Login
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |

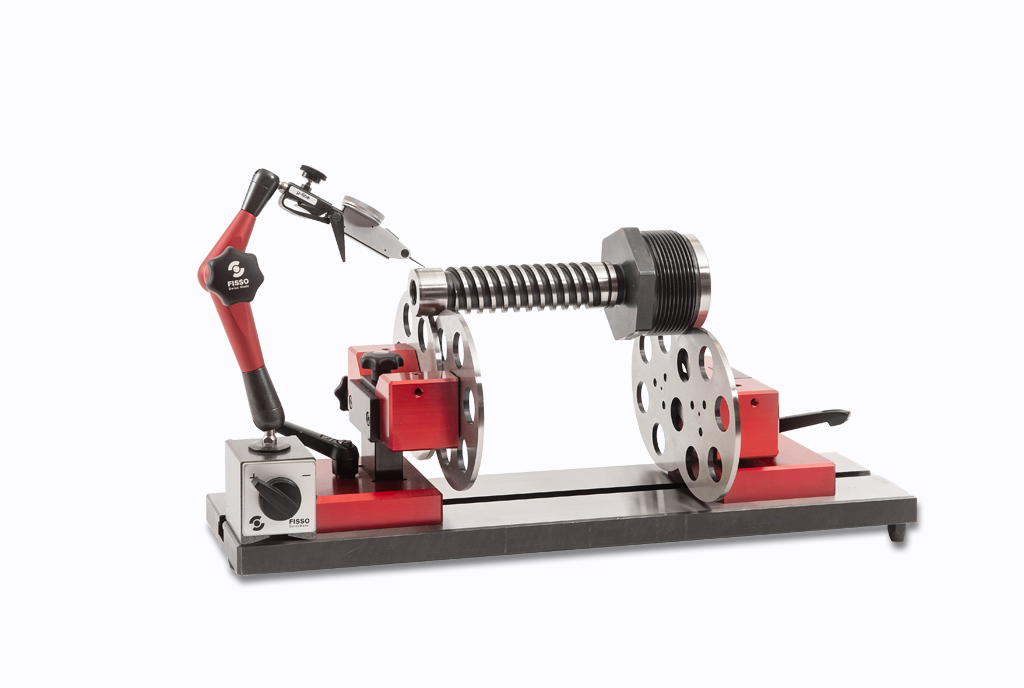

Concentricity testers RLPG 240/1000 with steel base plate, hardened, with roller wheels
- Concentricity accuracy better than 0.005mm
- Roller wheels Ø 120x4mm hardened
- One rolling block height adjustable, range 30mm for adjusting different workpiece diameters
- Supports steplessly adjustable, fixation with handle
- Stand with fine adjustment, dial mounting hole Ø 8mm

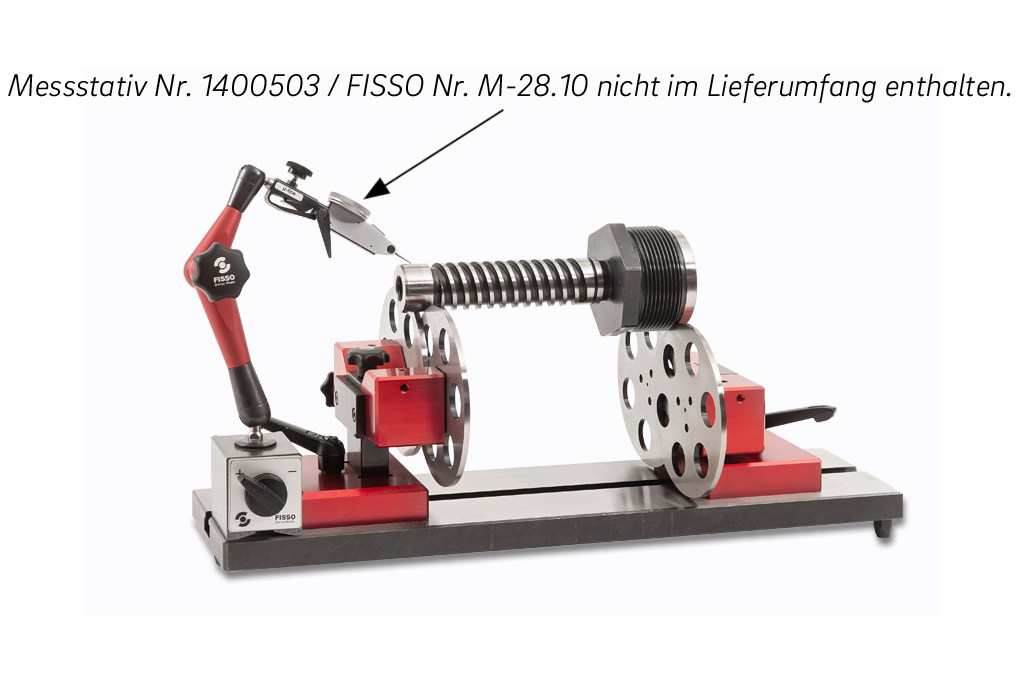

Delivered in individual packages, without stand, without dial test indicator
! Single base plates on request.
| Concentricity testers RLPG 240/1000 with steel base plate, hardened, with roller wheels | |
|---|---|
| Size: | 120x4/Ø240/1000mm |
| Article number: | 1559703 |
| Brand: | FISSO |
| Manufacturer number: | 6.302 |
| Dimension: | 120x4/1000mm |
| Base plate: | With |
| Workpiece Ø: | Max. 240mm |
| Diameter compensation: | Max. 60mm |
| Workpiece weight: | Max. 25kg |
| Groove stone width: | 14mm |
| Weight: | 22.8kg |
