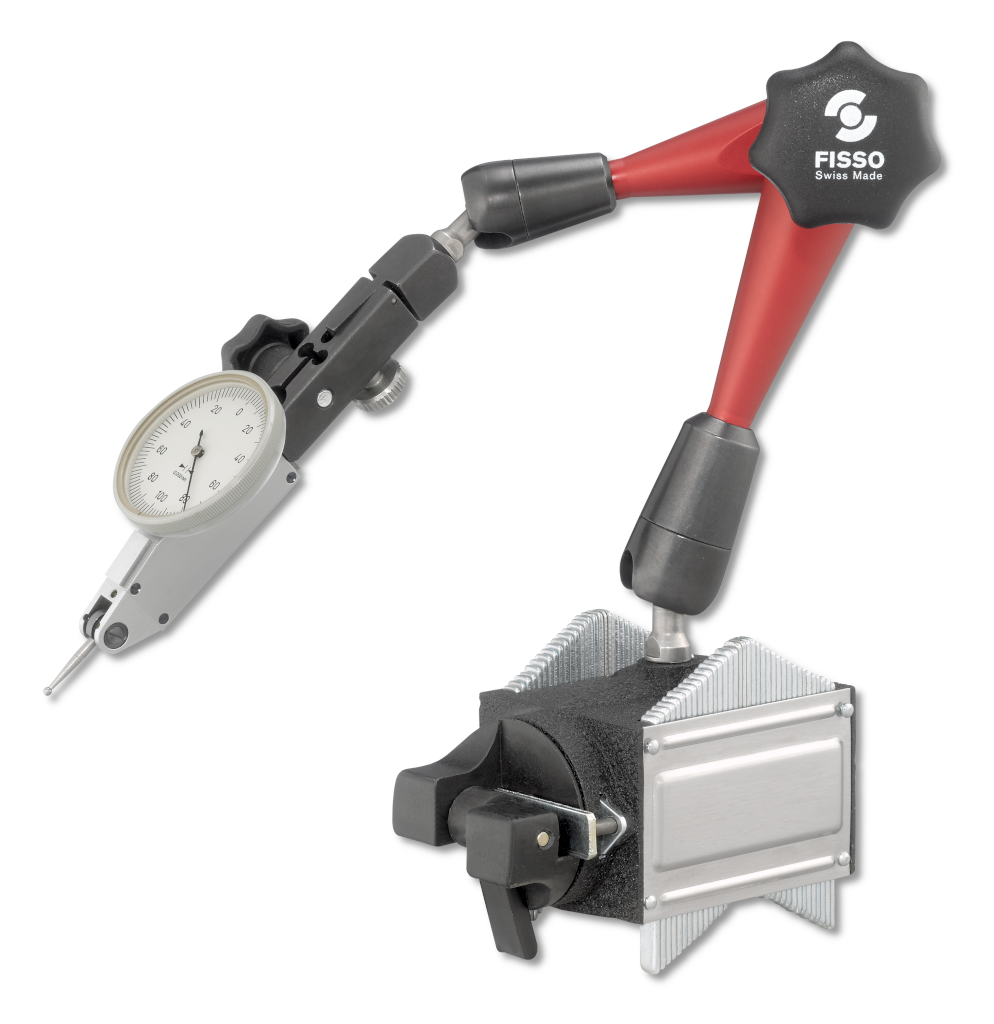

Articulated measuring stands Strato Line M-28 F + M magnetic, mechanical centre lock and micro fine adjustment
- Freely adjustable arm
- Aluminium linkage
- Magnetic V base
- Switchable magnet
- Dial mounting hole Ø 8mm
- Aluminium arm tube in red anodised, ball housing KTL coated (higher corrosion protection)
Delivered in individual packages, without dial gauge
Applications:
- The large Strato model additionally features steplessly adjustable pre-tensioning to protect the instrument.
Articulated measuring stands Strato Line M-28 F + M magnetic, mechanical centre lock and micro fine adjustment
| Size: | 280/390mm |
|---|---|
| Article no.: | 1400503 |
| Brand: | FISSO |
| Manufacturer number: | M-28.10 |
| Base: | switch magnet |
| Base dimension: | 60x50x55mm |
| op. range/height: | 280/390mm |
| Adhesive force: | 800N |
| Fine adjustment: | Ø 8mm |
| Height: | 390mm |
| Weight: | 1.85kg |
Articulated measuring stands Strato Line M-28 F + M magnetic, mechanical centre lock and micro fine adjustment 280/390mm
Article no.: 1400503
€381.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 1 week
Shipping method:
Parcel delivery service
Weight:
1.85kg
EAN / GTIN:
4066918053428
Manufacturer number:
M-28.10
Customs code:
90178090
All variants
