Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm

NEW
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements 32-500mm / 0-470mm, 00656
Illustration similar ©ULTRA Germany

€2,961.00*

Prices excl. VAT and shipping costs

Custom price after Login


Article number: 1398402
Delivery time approx. 6 weeks
Shipping method: Parcel delivery service Parcel delivery service
Weight: 1kg
EAN / GTIN: 4066918107534
Manufacturer number: 00656
Customs code: 90318020
Measuring range
Reading
Quantity:

Do you need more information?

Login/Register
+49 (0) 6021 42 999 00
mail Created with Sketch Beta. Contact

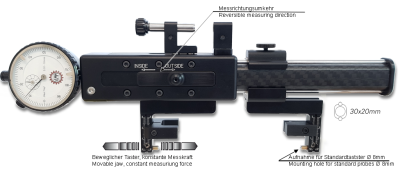

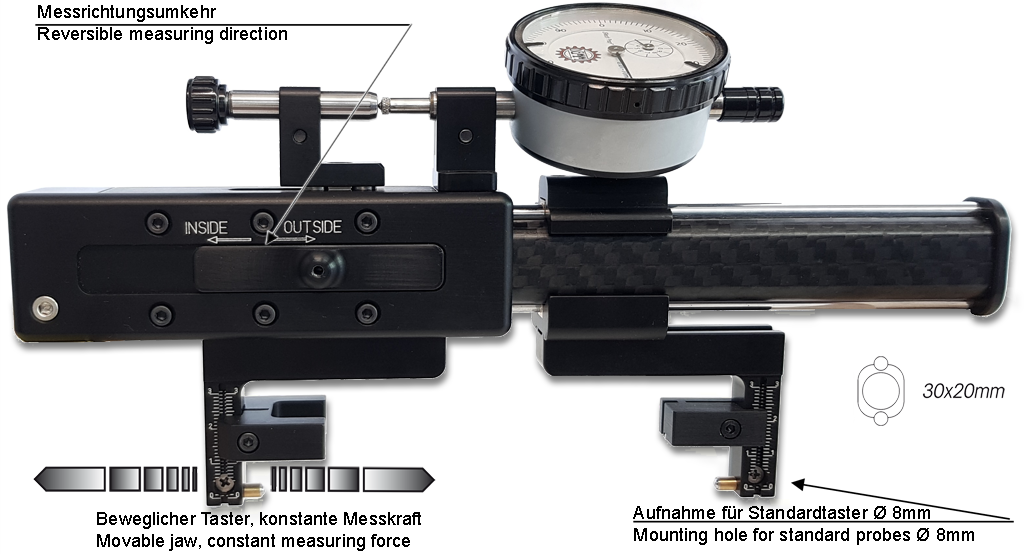

Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements

  • Works standard
  • Carbon fibre bar, guiding elements made of chrome steel
  • Extremely low weight, high strength of shape
  • Locking screw
  • Reversible measuring direction
  • Measuring path max. 20mm
  • Measuring inserts free movable due to height-adjustable depth stop which assures high precision measurements
  • Interchangeable measuring inserts
  • Dial gauge reading 0.01mm
  • Adjustable tolerance marks
  • Dial mounting hole Ø 8mm

Delivered in a case incl. dial gauge, depth stop and probe pair shaft Ø 3mm R 1,5mm

Applications:

  • Inside and outside measurements, with special measuring inserts also in slots and recesses
  • All standard measuring inserts with connection thread M2.5 or shaft Ø 3.5mm can be mounted with measuring arms
  • Thread measurements with thread inserts shaft Ø 3.5mm
  • Gear tooth measurements with measuring balls in holder and adaptor bolts
Universal comparative measuring instruments in box MINI PLATON CARBON for inside and outside measurements
Size: 32-500mm / 0-470mm
Article number: 1398402
Brand: DEMM
Manufacturer number: 00656
Reading: 0,01mm
Measuring range: 32-500mm / 0-470mm
Repeatability: 0,002mm
Size B Inside: 32-500mm
Size A Outside: 0-470mm
Dimension C: 445mm
Probe shaft: Ø 3,5mm
Bar cross section: 30x20mm
Weight: 1kg
All variations:
1398401 00655
32-320mm / 0-290mm
Universal comparative measuring instruments in box
MINI PLATON CARBON for inside and outside measurements

€2,274.00*

approx. 6 weeks
NEW
1398402 00656
32-500mm / 0-470mm
Universal comparative measuring instruments in box
MINI PLATON CARBON for inside and outside measurements

€2,961.00*

approx. 6 weeks
NEW
