Pin gauges, singles Tol.±0,001mm Hardened stainless steel DIN 2269 Ø 25,000-26,999/0,001/70mm
€571.00*
Custom price after Login
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |

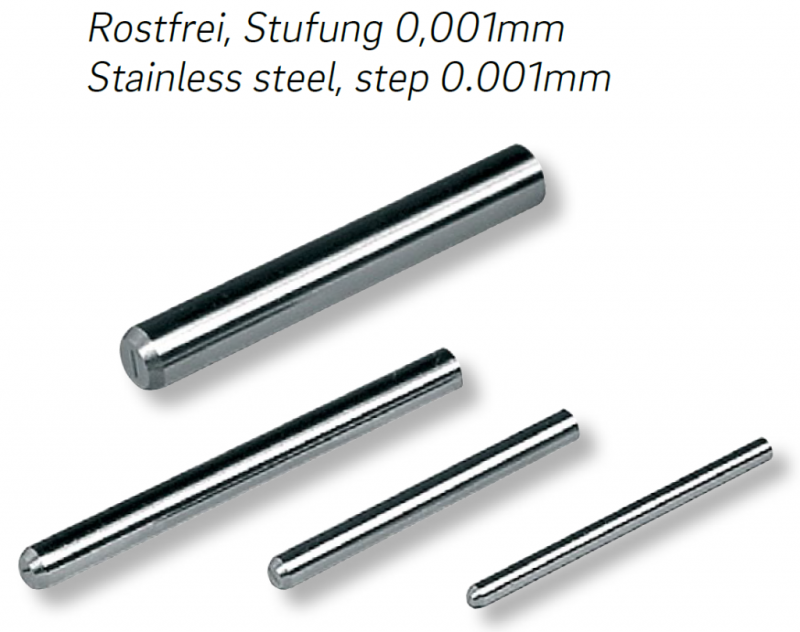

Pin gauges, singles Tol.±0,001mm Hardened stainless steel DIN 2269
- DIN 2269
- Hardness 52-54 HRC
- Larger than Ø 1.5mm with chamfer
- Nominal size marked from Ø 2.0mm
Delivered in individual packages
! Other lengths or larger diameters on request.
! Order notice - Please enter exact nominal size, e.g. Ø 10,25mm oder Ø 16,113mm.
| Pin gauges, singles Tol.±0,001mm Hardened stainless steel DIN 2269 | |
|---|---|
| Size: | Ø 25,000-26,999/0,001/70mm |
| Article number: | 1065113 |
| Brand: | ULTRA |
| Step: | 0,001mm |
| Nominal size: | Ø 25,000-26,999mm |
| Length: | 40mm |
| Material: | Stainless steel hard |
| Tolerance: | ±0,001mm |
| Weight: | 0.31kg |
single ended incl. diameter marking
double ended incl. diameter marking
All variations:
€62.00*
€76.00*
€80.50*
€114.00*
€175.00*
€208.00*
€274.00*
€22.40*
€19.20*
€25.20*
€33.20*
€45.40*
€81.00*
€106.00*
€116.00*
€149.00*
€299.00*
€328.00*
€345.00*
€571.00*
€611.00*
€703.00*
€782.00*
