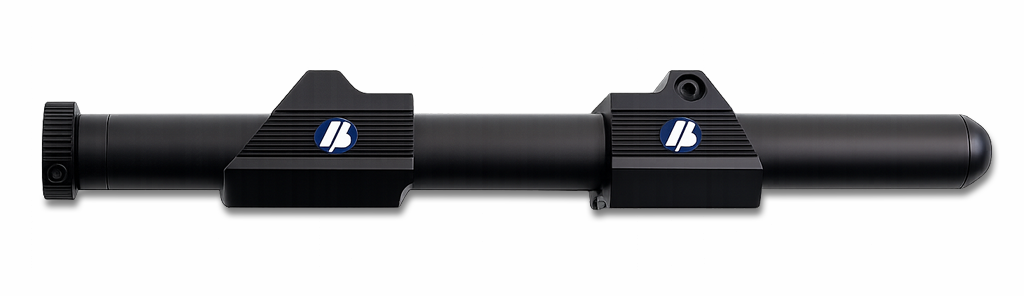

                                Illustration similar ©ULTRA Germany

                        Universal measuring instruments TGU in box w/o dial gauge Basic device single, for internal and outside measurements
- Works standard
- Basic device single
- Pipe made of black anodized steel
- Reversible measuring direction
- Measuring way max. 20mm
- Constant measuring force approx. 6.0 – 8.5N
- Interchangeable measuring inserts
- Repeatability of measuring values approx. 0.002mm with anvil arms 50mm
- Dial mounting hole Ø 8mm
- Probe mounting hole Ø 5mm
Delivered in a case, without dial gauge, accessories and measuring arms
Applications:
- Inside and outside measurements, with special measuring inserts also in slots and recesses
- All standard measuring inserts with connection thread M2.5 can be mounted with adapter No. 1398 262
- Thread measurements with thread inserts shaft Ø 3.5mm, Nr. 2048 5.. / 2048 6..
- Gear tooth measurements with measuring balls in holder No. 2050 3.. and adapter bolts No. 1390 311
- Measuring range expandable up to 3000mm with extensions
Universal measuring instruments TGU in box w/o dial gauge Basic device single, for internal and outside measurements
| Size: | 30-255 / 0-220mm |
|---|---|
| Article no.: | 1397601 |
| Brand: | BOWERS |
| Manufacturer number: | TGU1000-XT |
| Meas. range inside: | 30-255mm |
| Meas. range outside: | 0-220mm |
| Weight: | 0.98kg |
                                            general.loadingIndicator


                                            general.loadingIndicator

                                    Alle Varianten
            Universal measuring instruments TGU in box w/o dial gauge

                Basic device single, for internal and outside measurements

                30-255 / 0-220mm

        Article no.: 1397601
€2,138.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login




                                                            approx. 1 week




                        Shipping method:


                                                    Parcel delivery service






                                                            Weight:
                                                                0.98kg


                                                EAN / GTIN:
                                                    5051102226206


                                                Manufacturer number:
                                                    TGU1000-XT


                                                Customs code:
                                                    90178090
