Illustration similar ©ULTRA Germany

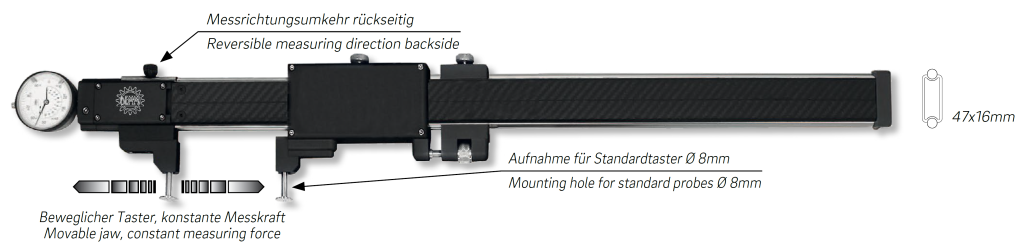

Universal comparative measuring instruments in box BIG PLATON CARBON for inside and outside measurements
- Works standard
- Carbon fibre bar, guiding elements made of chrome steel
- Extremely low weight, high strength of shape
- Locking screw and fine adjustment
- Reversible measuring direction
- Measuring path max. 20mm
- Measuring inserts free movable due to depth stop which assures high precision measurements
- Interchangeable measuring inserts
- Dial gauge reading 0.01mm
- Adjustable tolerance marks
- Dial mounting hole Ø 8mm
Delivered in a case incl. dial gauge, depth stop and probe pair Ø 20mm
Applications:
- Inside and outside measurements, with special measuring inserts also in slots and recesses
- All standard measuring inserts with connection thread M2.5 or shaft Ø 3.5mm can be mounted with measuring arms no. 1851 810
- Thread measurements with thread inserts shaft Ø 3.5mm No. 2048 5.. / 2048 6..
- Gear tooth measurements with measuring balls in holder No. 2050 3.. and adaptor bolts No. 1390 311
Universal comparative measuring instruments in box BIG PLATON CARBON for inside and outside measurements
| Size: | 2000mm |
|---|---|
| Article no.: | 1399206 |
| Brand: | DEMM |
| Manufacturer number: | 00854 |
| Reading: | 0,01mm |
| Measuring range: | 2000mm |
| Weight: | 3.6kg |
general.loadingIndicator
Probes, adaptor bolts and sleeves (pair)
for DEMM universal comparative measuring instruments
for DEMM universal comparative measuring instruments
With clamping shaft Ø 8mm
general.loadingIndicator
general.loadingIndicator
general.loadingIndicator
general.loadingIndicator
Probes for thread measurement 60° metric (pair)
for DEMM universal comparative measuring instruments
for DEMM universal comparative measuring instruments
Thread pitches 0,8 - 6mm
general.loadingIndicator
general.loadingIndicator
general.loadingIndicator
Universal comparative measuring instruments in box
BIG PLATON CARBON for inside and outside measurements
2000mm
Article no.: 1399206
€6,021.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 6 weeks
Shipping method:
Parcel delivery service
Weight:
3.6kg
EAN / GTIN:
4066918053060
Manufacturer number:
00854
Customs code:
90318020
