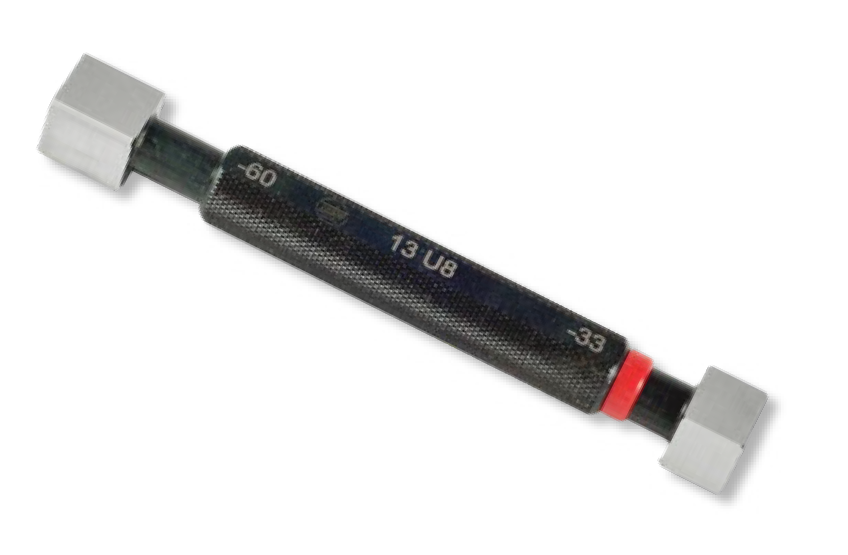

Square limit plug gauges, tolerances acc. DIN EN ISO 1938-1 GO side full, NO-GO side reduced
- Manufacturing tolerances according to DIN EN ISO 1938-1
- Construction dimensions according to DIN 2245 until 65.000mm (GO and NO-GO sides on one gauge)
- Construction dimensions according to DIN 2246 / 2247 > 65.000mm (Separate GO and NO-GO sides, pair)
- Hardened tool steel
- ISO Tolerance A-ZC, Qualities 6-13, all intermediate dimensions, all numerical tolerances
- GO side full and NO-GO side reduced
Delivered in individual packages
! Smaller and larger nominal sizes, tungsten carbide tipped measuring faces, quality 5 and finer, measuring faces and handles in special shape, master gauges, larger lengths, square and hexagonal ring gauges on request.
! Order notice - Please enter exact nominal size, e.g. 7,58mm or 20,495mm as well as the required tolerance e.g. H8 oder 0/+0,2mm
Square limit plug gauges, tolerances acc. DIN EN ISO 1938-1 GO side full, NO-GO side reduced
| Size: | 10,001-15,000/0,001mm |
|---|---|
| Article number: | 1090105 |
| Brand: | ULTRA |
| Step: | 0,001mm |
| Nominal size: | 10,001-15,000mm |
| Weight: | 0.1kg |
Alle Varianten
Square limit plug gauges, tolerances acc. DIN EN ISO 1938-1
GO side full, NO-GO side reduced
10,001-15,000/0,001mm
Article number: 1090105
€440.00*
Prices excl. VAT and shipping costs
Custom price after Login
