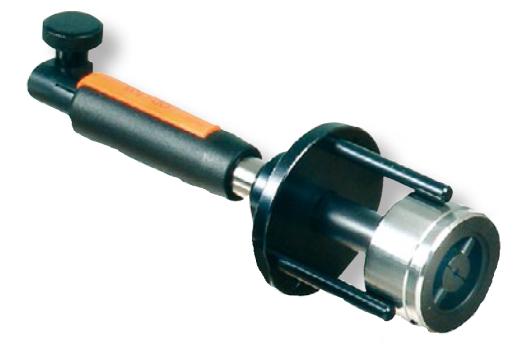

OD precision bore gauges, sleeve blind bores hardened steel, tungsten carbide-tipped measuring contacts
- Works standard
- Two-point comparative measuring instrument
- Measuring sleeve hardened steel
- Tilt-preventing measuring sleeve
- No search for turning point
- Tungsten carbide-tipped measuring contacts ~1600V and gauge pins made of tungsten carbide (offset by 180° and radially movable)
- Measuring range 0.2mm
- Mounting thread M11x0.75 (M10x1 on request)
- Dial mounting hole Ø 8mm
- Repeatability of measuring values < 1.0µm
Delivered in individual packages without dial gauge, handle and setting rings
! Order notice - Please enter exact bore diameter, e.g. Ø 12,01mm or Ø 35,288mm, as well as the required tolerance e.g. H7 or +0,15/-0mm
! Setting rings DIN 2250-C must be ordered separately.
! Larger diameters, reduced undersize for tolerance < 10µm or quality 5 and finer, measuring contacts made of ruby, delrin, diamond or ceramic and three-point model, in segment design, with high-precision digital display on request.
OD precision bore gauges, sleeve blind bores hardened steel, tungsten carbide-tipped measuring contacts
| Size: | Ø 60,100-80,099/0,001mm h=1,2 |
|---|---|
| Article no.: | 30600001 |
| Brand: | SCHWENK |
| Manufacturer number: | 306 00001 |
| Step: | 0,001mm |
| Sleeve: | Hardened steel |
| Model: | Blind bores |
| Nominal size: | Ø 60,100-80,099mm |
| Weight: | 1kg |
OD precision bore gauges, sleeve blind bores hardened steel,
tungsten carbide-tipped measuring contacts
Ø 60,100-80,099/0,001mm h=1,2
Article no.: 30600001
€905.00*
Prices excl. VAT and shipping costs
