Illustration similar ©ULTRA Germany

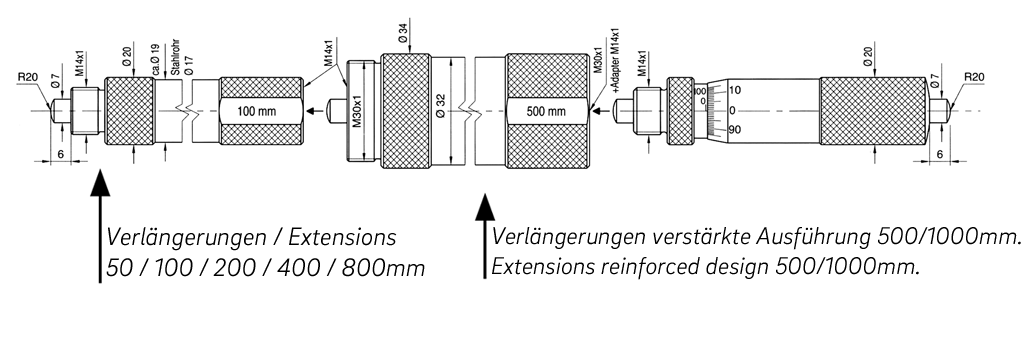

Internal micrometer sets in box, spring-loaded extensions spherical tungsten carbide meas. faces Ø 7x6mm, pitch 0,5mm
- Accuracy better than DIN 863
- Satin chrome reading parts
- Spindle pitch 0.5mm
- Spindle adjustment 50mm
- Insulated pads
Delivered in a case
!For large measuring ranges we suggest to put the micrometer on 2 points (approx. 22% of the total length at each end).**
Internal micrometer sets in box, spring-loaded extensions spherical tungsten carbide meas. faces Ø 7x6mm, pitch 0,5mm
| Size: | 100-200/0,01mm |
|---|---|
| Article no.: | 2088205 |
| Brand: | ULTRA |
| Reading: | 0,01mm |
| Spindle pitch: | 0,5mm |
| Measuring range: | 100-200mm |
| Extensions Ø 17mm: | 50mm |
| Insulated pads: | Yes |
| Reading parts: | Satin chrome plated |
| Weight: | 0.27kg |
Internal micrometer sets in box, spring-loaded extensions
spherical tungsten carbide meas. faces Ø 7x6mm, pitch 0,5mm
100-200/0,01mm
Article no.: 2088205
€591.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service
Weight:
0.27kg
EAN / GTIN:
4066918086006
Customs code:
90173000
All variants
