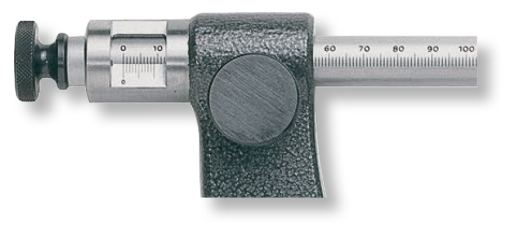

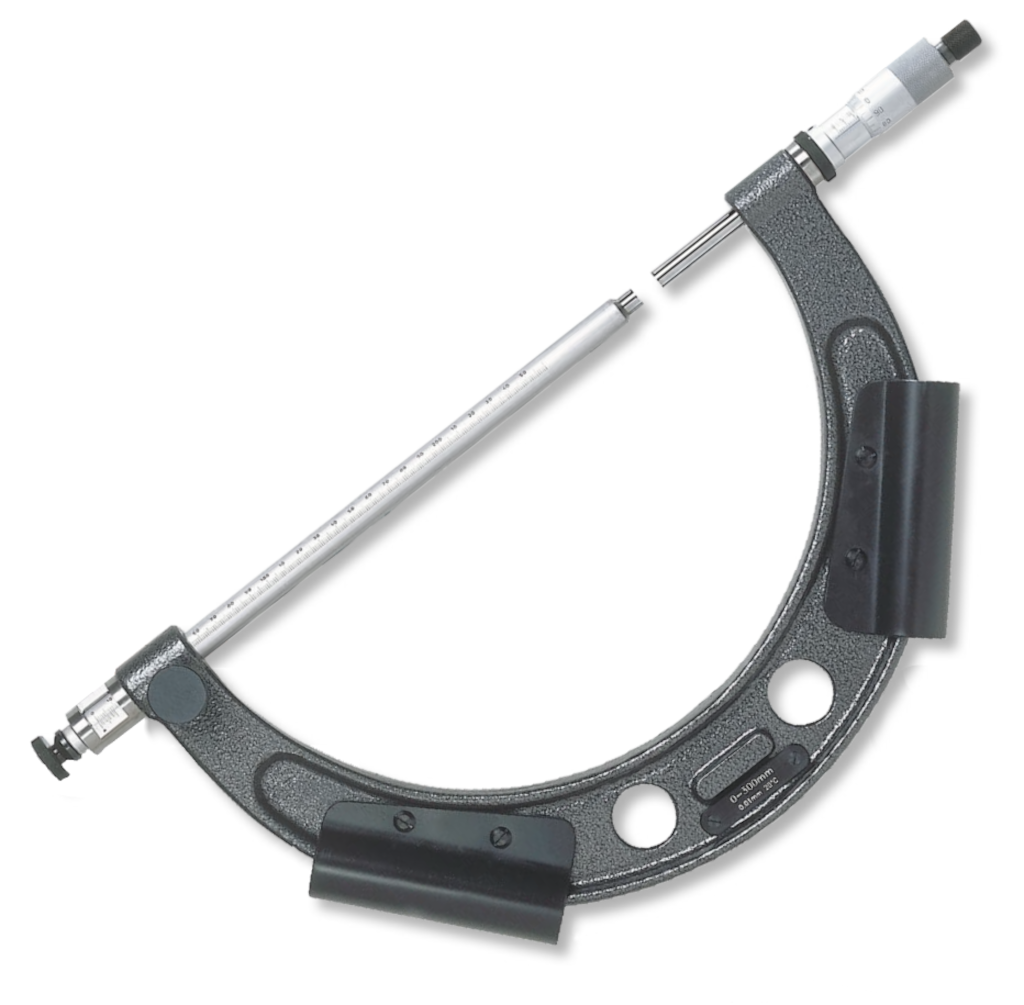

Illustration similar ©ULTRA Germany
External micrometers, spindle adjust. 50mm, movable anvil Tungst. carb. meas. faces Ø 10mm, pitch 1,0mm
- Accuracy better than DIN 863
- Reading micrometer 0.01mm, vernier 0.1mm
- Satin chrome reading parts
- Tungsten carbide-tipped measuring faces Ø 10mm
- Spindle pitch 1.0mm
- Spindle clamping with ring
- Friction clutch
- Light metal frame
Delivered in individual packages, with insulated pads
! Other types of measuring faces on request.
External micrometers, spindle adjust. 50mm, movable anvil Tungst. carb. meas. faces Ø 10mm, pitch 1,0mm
| Size: | 0-300/0,01/0,1mm |
|---|---|
| Article number: | 2043201 |
| Brand: | ULTRA |
| Spindle pitch: | 1,0mm |
| Measuring range: | 0-300mm |
| Reading: | 0,01/0,1mm |
| Weight: | 1.9kg |
general.loadingIndicator
Setting gauge sets for external micrometer No. 2043201
Measuring faces hardened steel
Measuring faces hardened steel
50/150/250mm (3 pcs.)
general.loadingIndicator
Alle Varianten
External micrometers, spindle adjust. 50mm, movable anvil
Tungst. carb. meas. faces Ø 10mm, pitch 1,0mm
0-300/0,01/0,1mm
Article number: 2043201
€1,482.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service
Weight:
1.9kg
EAN / GTIN:
4066918080271
Customs code:
90173000
