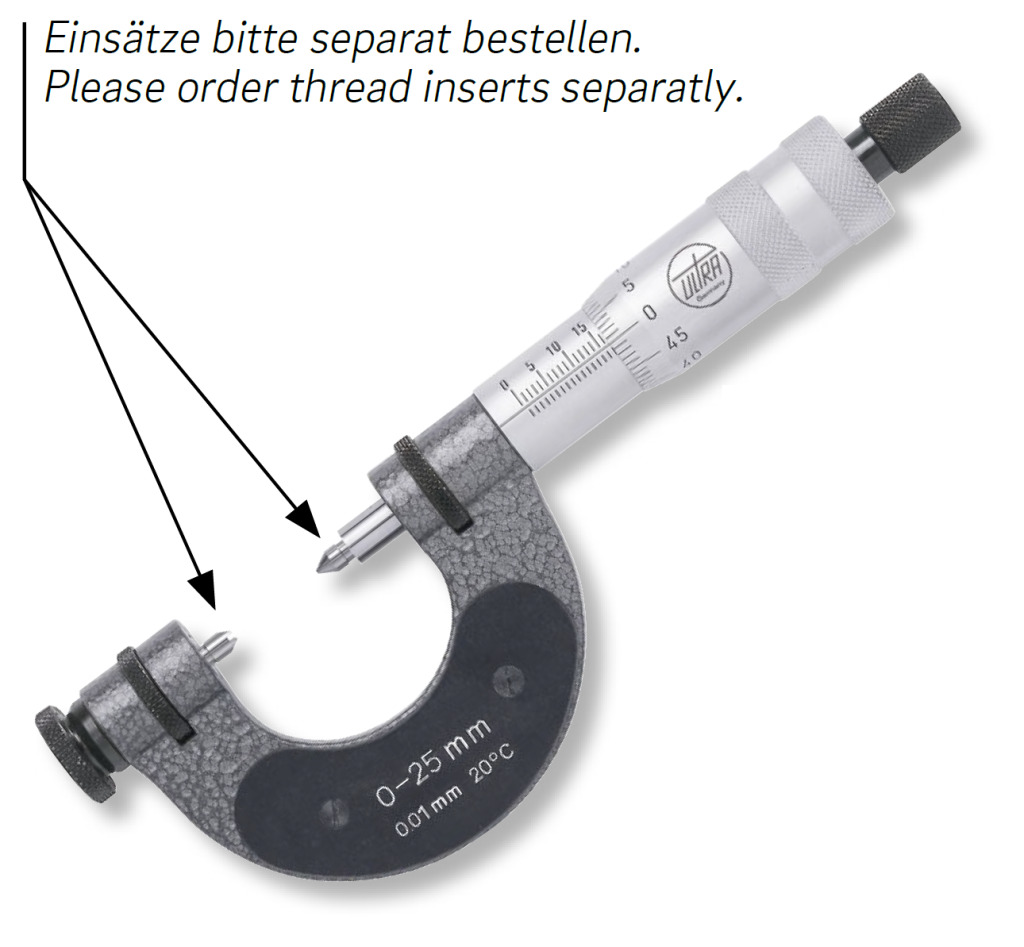

    External micrometers in box for thread measurement with mounting hole for inserts Ø 4mm, pitch 0,5mm
- Accuracy better than DIN 863
- Satin chrome reading parts
- Spindle pitch 0.5mm
- Spindle clamping with ring
- Friction clutch
Delivered in a case without thread inserts
! Please order setting gauges No. 2047 10. (60°), No. 2047 20. (55°) or 2047 30. separatly.
! Larger measuring ranges and spindle pitch 1.0mm on request.
External micrometers in box for thread measurement with mounting hole for inserts Ø 4mm, pitch 0,5mm
| Size: | 125-150/0,01mm |
|---|---|
| Article no.: | 2045106 |
| Brand: | ULTRA |
| Reading: | 0,01mm |
| Spindle pitch: | 0,5mm |
| Measuring range: | 125-150mm |
| Weight: | 0.7kg |




                                                                                                                                            Alle Varianten
            External micrometers in box for thread measurement

                with mounting hole for inserts Ø 4mm, pitch 0,5mm

                125-150/0,01mm

        Article no.: 2045106
€623.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login
