Illustration similar ©ULTRA Germany

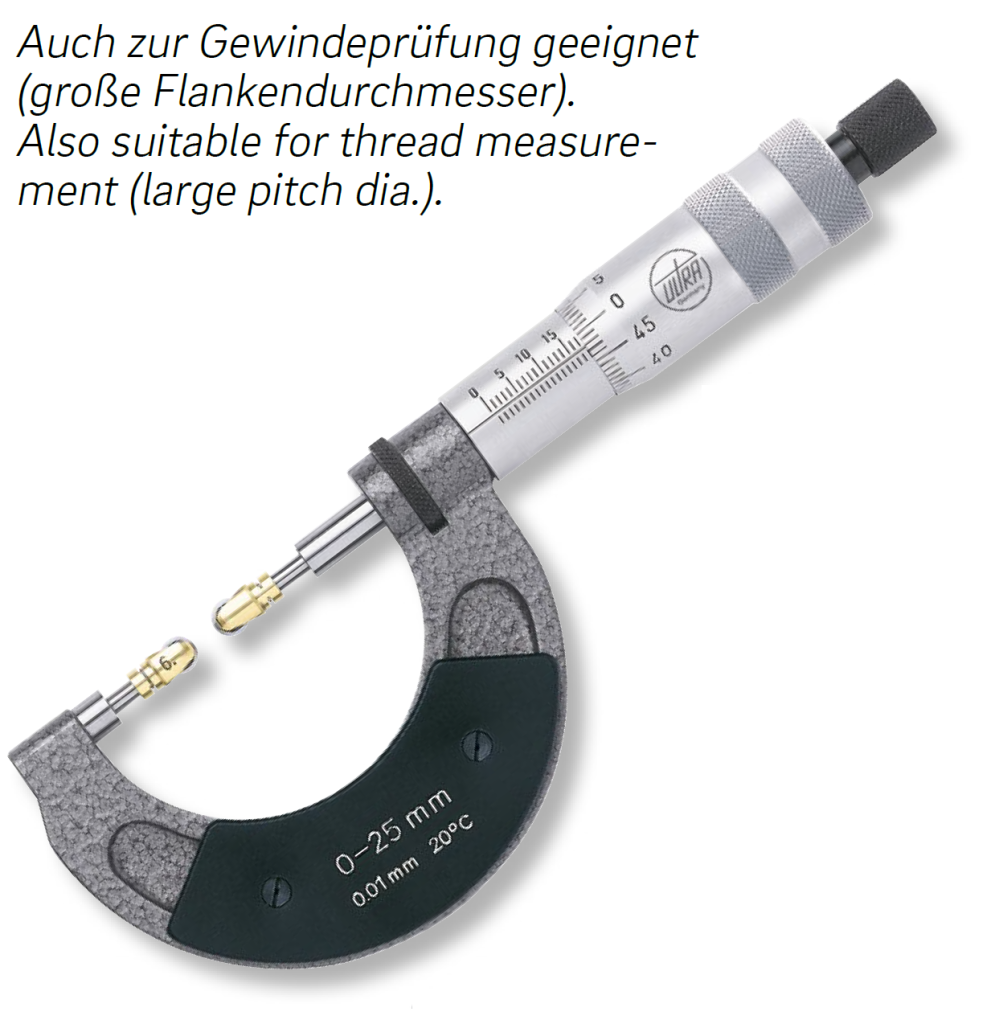

External micrometers in box for gear measurement Pitch 0,5mm
- Accuracy better than DIN 863
- Satin chrome reading parts
- Hardened measuring ends Ø 3x8mm
- Spindle pitch 0.5mm
- Spindle clamping with ring
- Friction clutch
- Insulated pads
Delivered in a case without measuring balls
! Please order measuring balls in holder No. 2050 3.. separatly.
! Larger measuring ranges on request.
External micrometers in box for gear measurement Pitch 0,5mm
| Size: | 0-25/0,01mm |
|---|---|
| Article number: | 2050101 |
| Brand: | ULTRA |
| Reading: | 0,01mm |
| Measuring range: | 0-25mm |
| Spindle pitch: | 0,5mm |
| Weight: | 0.34kg |
Measuring ball pairs in holder for gear measurement
Tol.±0,001, for micrometers No. 2050 1.. and No. 2051 10.
Tol.±0,001, for micrometers No. 2050 1.. and No. 2051 10.
Ø 1,5mm - Ø 15mm
general.loadingIndicator
Alle Varianten
External micrometers in box for gear measurement
Pitch 0,5mm
0-25/0,01mm
Article number: 2050101
€468.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service
Weight:
0.34kg
EAN / GTIN:
4066918082121
Customs code:
90173000
