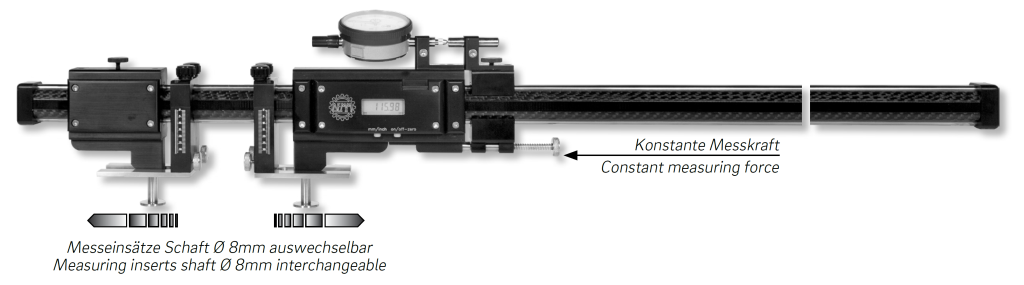

• Works standard
• Protection class IP54, Sylvac System
• Carbon fibre bar, guiding elements made of chrome steel
• Extremely low weight, high strength of shape
• Large LCD display, reading 0.01mm
• Locking screw
• Reversible measuring direction
• Measuring path max. 20mm
• Measuring inserts free movable due to depth stop which assures high precision measurements
• Interchangeable measuring inserts
• Dial gauge reading 0.01mm
• Adjustable tolerance marks
• Dial mounting hole Ø 8mm

Delivered in a case incl. dial gauge, depth stop and probe pair Ø 20mm

Functions:

• On/Off
• mm/inch commutation
• Zero setting at any position
• Preset function ±
• Hold function
• Data output Opto

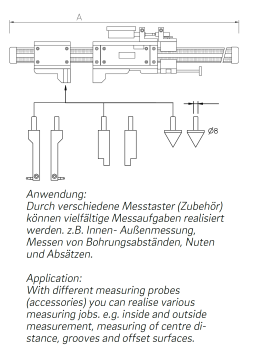

Applications:

• Inside and outside measurements, with special measuring inserts also in slots and recesses
• All standard measuring inserts with connection thread M2.5 or shaft Ø 3.5mm can be mounted with measuring arms no. 1851 810
• Thread measurements with thread inserts shaft Ø 3.5mm No. 2048 5.. / 2048 6..
• Gear tooth measurements with measuring balls in holder No. 2050 3.. and adaptor bolts No. 1390 311

Operation:

• The setting of the instrument will be made by using for example a Ø 50mm setting ring gauge, the digital display will be preset to the value 50mm and the dial gauge will be adjusted to 0 (reversing point!).
• By sliding the right jaw (electronic device) you can now preset each value up to the complete measuring range of the instrument.
• The deviation of your work piece, in comparison to your preset value at your digital display, will be read at the dial gauge in 1/100mm (reversing point!).

Advantage:

• One setting master is sufficient to adjust the instrument and to be able to use it after that for any size within the instrument capacity.
