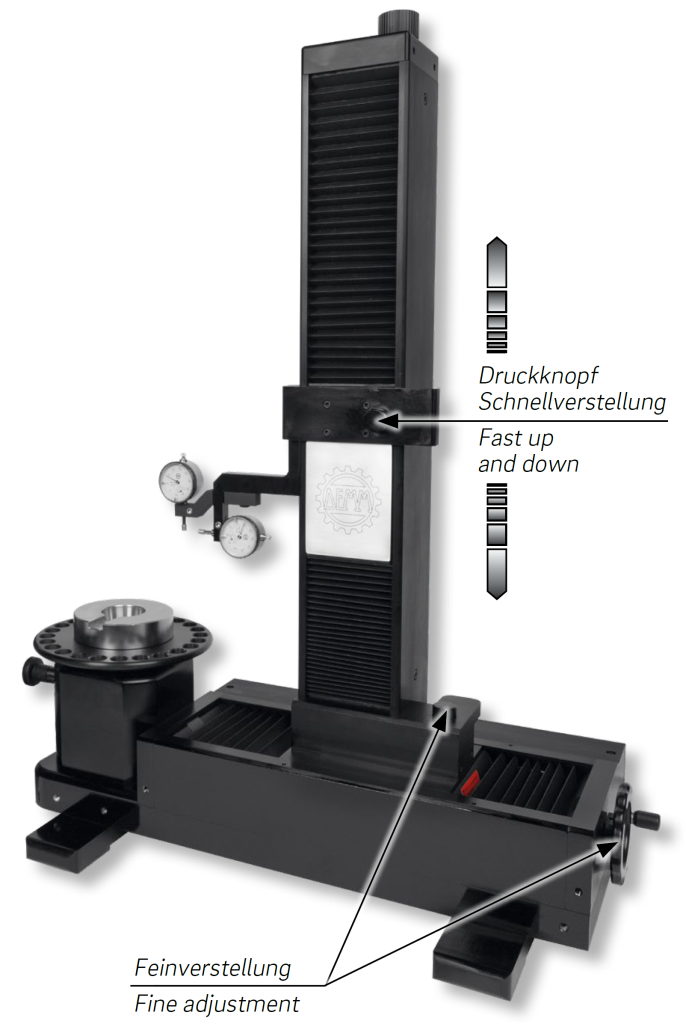

Digital tool pre-setting instrument MERY G
- Works standard
- Measuring and adjusting tools
- Tool holding device rotating
- Big display with measuring results for both axis with length measuring system „GIVI“, resolution switchable (0.001 / 0.0005mm etc.)
- Precision dial gauges (0.01mm) for X- and Z-axis
- X- and Z-axis with quick adjustment through central push button at the housing
- Fine adjustment through hand wheel
- Standard tool holding device SK 40 (turnable)
- Tool fitting adjustable (ISO/HSK/VDI/BT)
- Axis protection by harmonica type cover
Delivered with dial gauges
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- ± Preset function
- Power supply 230V
- Data output RS 232
Application:
- Contact measurement at the tool edge
- Precision dial gauge as 0-point indicator for X- and Z-axis
- Constant measuring force
- Perfect for determination of diameter and length
Digital tool pre-setting instrument MERY G
| Size: | X = 160mm / Z = 320mm SK40 |
|---|---|
| Article no.: | 1465401 |
| Brand: | DEMM |
| Manufacturer number: | 30521 |
| Working range: | X=160mm / Z=320mm |
| Execution: | MERY G |
| Weight: | 39kg |
Digital tool pre-setting instrument MERY G
X = 160mm / Z = 320mm SK40
Article no.: 1465401
€7,248.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 7 weeks
Shipping method:
Parcel delivery service
Weight:
39kg
EAN / GTIN:
4066918055200
Manufacturer number:
30521
Customs code:
90178090
