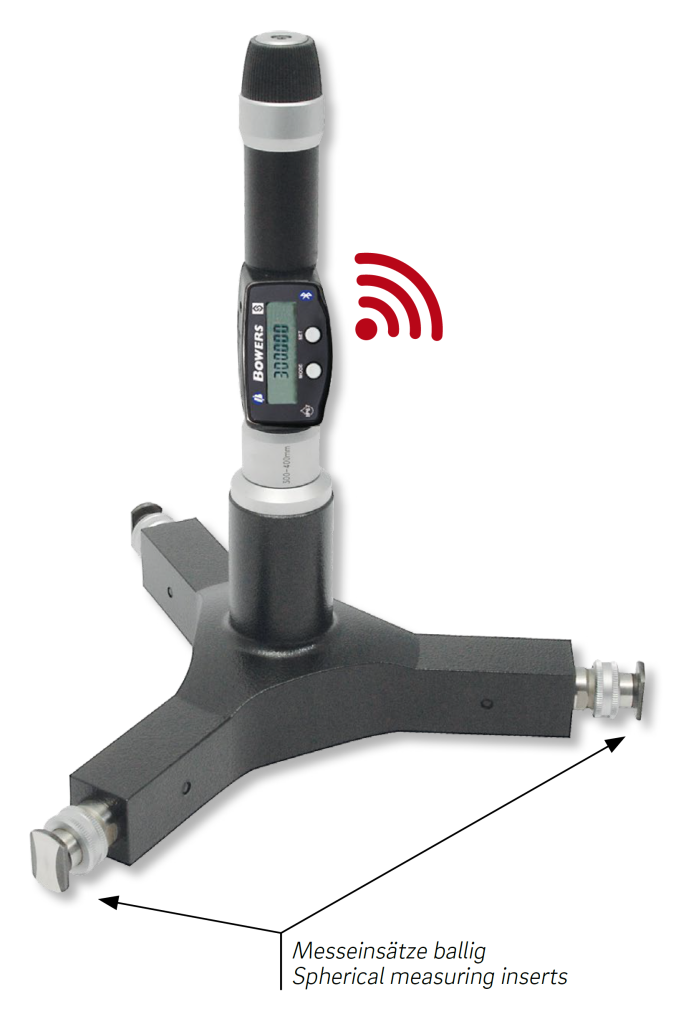

Digital internal micrometers, 3-point XT500 in box including setting ring and calibration certificates
- Works standard
- Protection class IP67, Sylvac System
- Spherical measuring inserts (hardened)
- For through bores only
- Large LCD display
- With Bluetooth function and SylvacBT Smart App for a wireless data transmission
- Constant measuring force
- Sturdy ratchet
Delivered in a case, including setting ring Ø 300mm and UKAS calibration certificate
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Reversible reading 0.01 / 0.001mm
- Preset function ±
- Max. / min. memory
- Hold function
- Data output Proximity
Application:
- The setting of the instrument will be made by the master reference set (300 – 325mm) and the setting ring gauge Ø 300mm. The other anvil sets are then fitted as required without pre-setting.
Advantage:
The setting ring gauge Ø 300mm is sufficient to adjust the instrument within the complete measuring range 300 – 500mm.
! Measuring depth extensions on request.
Digital internal micrometers, 3-point XT500 in box including setting ring and calibration certificates
| Size: | 300-325/0,01/0,001/120mm BT |
|---|---|
| Article no.: | 2503101b |
| Brand: | BOWERS |
| Manufacturer number: | XT5001M-BT |
| Reading: | 0,001mm/.00005 inch |
| Measuring range: | 300-325mm/12-13 inch |
| Weight: | 8.7kg |
Alle Varianten
Digital internal micrometers, 3-point XT500 in box
including setting ring and calibration certificates
300-325/0,01/0,001/120mm BT
Article no.: 2503101b
€4,778.00*
Prices excl. VAT and shipping costs
Custom price after Login
