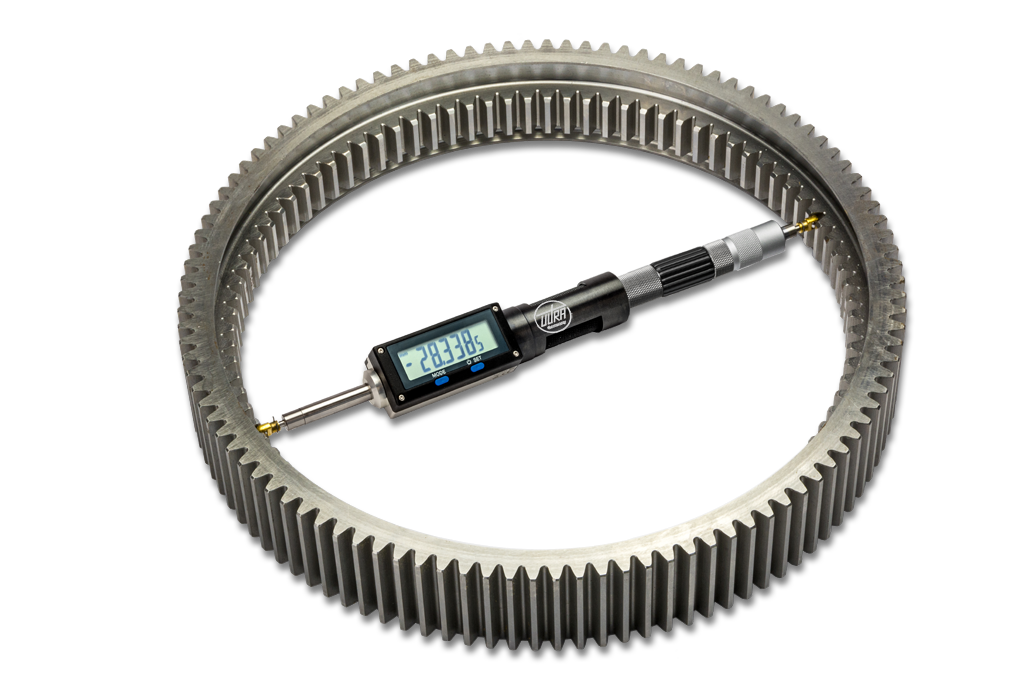

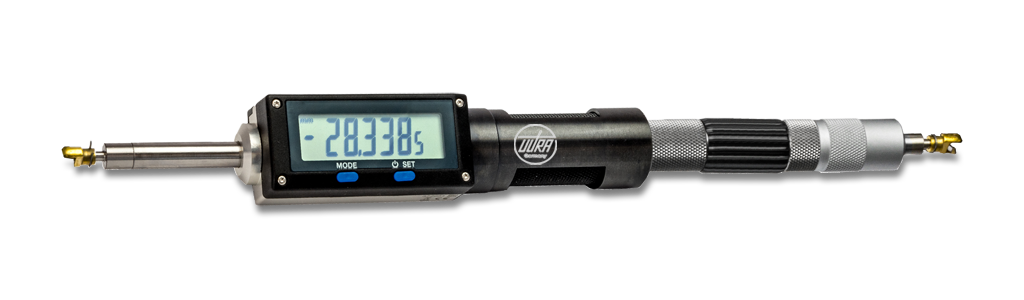

Digital internal micrometer sets in box for gear measurements / meas. ends Ø 3mm
- DIN 863
- Protection class IP65, Sylvac System
- Hardened measuring ends Ø 3x7mm
- Non-turning spindle
- Insulated pads
- Reading 0,01/0,001/0,0005mm - .0005/.00005/.000005 inch
2051 501: 195-400mm - approx. 8-16 inch / Extensions: 25mm, 50mm, 100mm
2051 502: 195-600mm - approx. 8-24 inch / Extensions: 25mm, 50mm, 100mm, 200mm
2051 503: 195-1000mm - approx. 8-40 inch / Extensions: 25mm, 50mm, 100mm, 200mm, 400mm
2051 504: 195-1600mm - approx. 8-63 inch / Extensions: 25mm, 50mm, 100mm, 2x 200mm, 2x 400mm
Delivered in a case
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Reversible reading 0.01 / 0.001mm/0.0005mm
- Reversible counting direction
- ± Preset function
- Max. / min. memory
- Hold function
- Data output Proximity
! Please order measuring balls in holder No. 2050 4.. separately.
! Single extension rods and larger measuring ranges on request.
Digital internal micrometer sets in box for gear measurements / meas. ends Ø 3mm
| Size: | 195-600/0,01/0,001/0,0005mm |
|---|---|
| Article no.: | 2051502 |
| Brand: | ULTRA |
| Reading: | 0,01/0,001/0,0005mm |
| Measuring range: | 195 - 600mm |
| Weight: | 0.72kg |
Tol.±0,001, for micrometers No. 2050 1.. and No. 2051 10.
Alle Varianten
Digital internal micrometer sets in box
for gear measurements / meas. ends Ø 3mm
195-600/0,01/0,001/0,0005mm
Article no.: 2051502
Price on request
Prices excl. VAT and shipping costs
Custom price after Login
