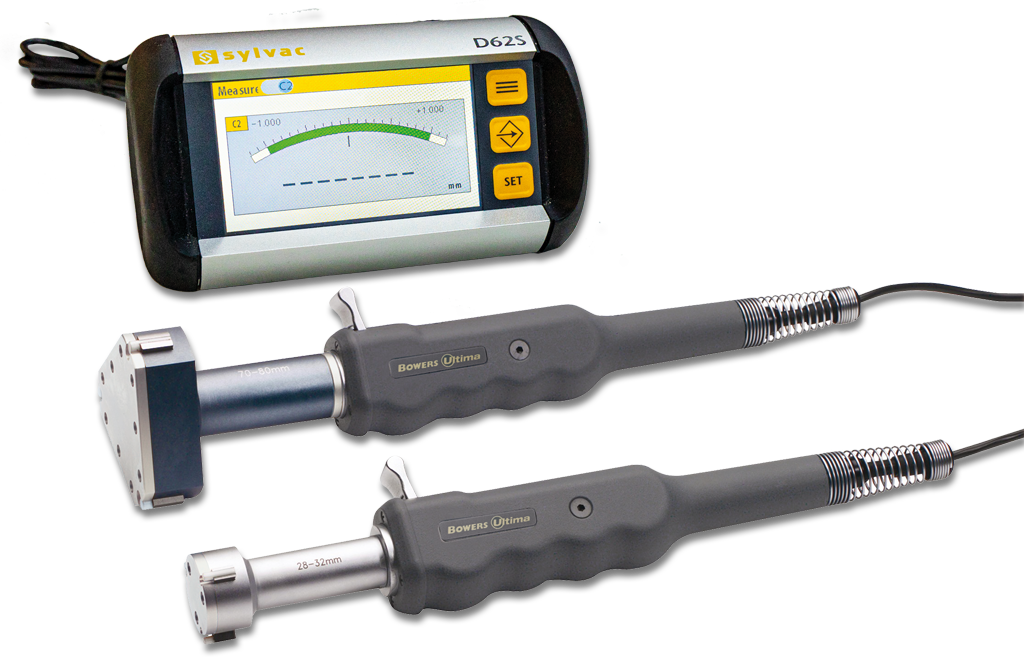

Digital internal bore gauge sets ULTIMA in box including setting rings and UKAS calibration certificates
- Works standard
- High precision measurement of different parts with only one display unit (max. two measuring probes)
- Ceramic-tipped measuring faces (< 12.0mm with steel measuring faces hardened)
- Blind bore measurement from 12.5mm
- Hand lever
- Self-centering measuring heads for good positive feel
- Fast switch of measuring heads with FASTFIT function
- Constant measuring force, spring loaded, high repeatability

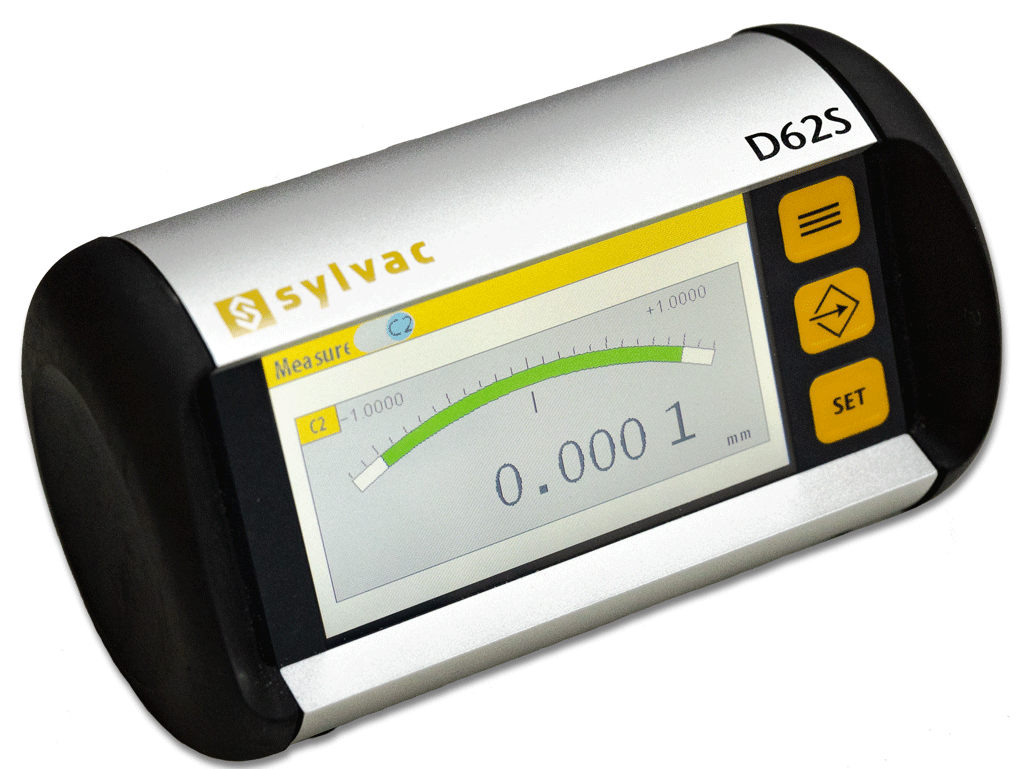

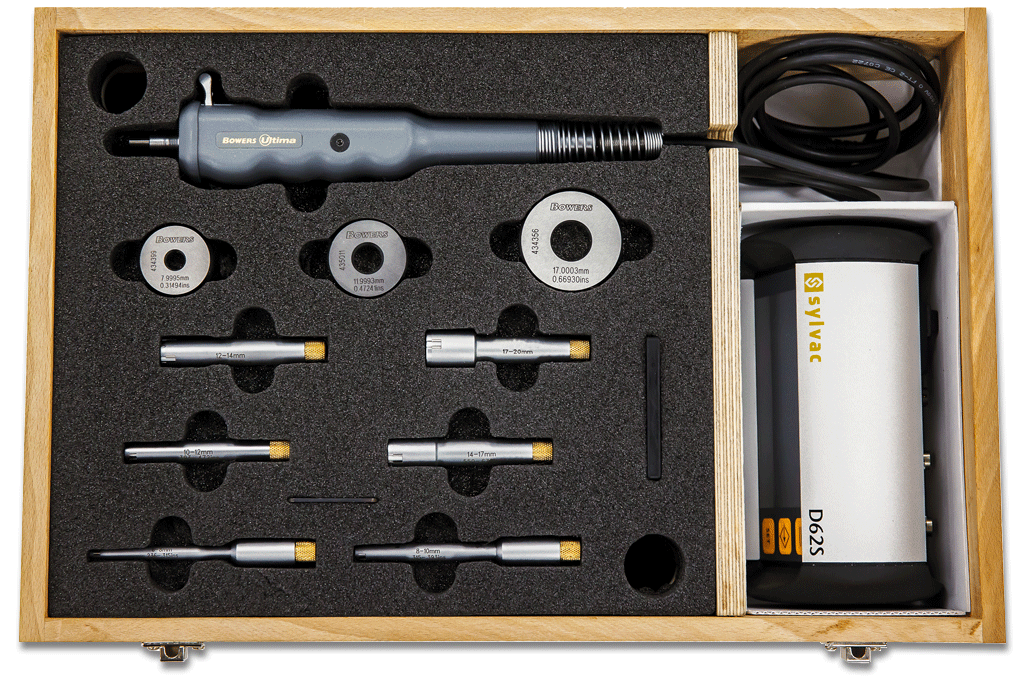

Delivered in a case including holder with measuring probe, measuring heads, setting ring gauges, Sylvac display unit D62S, adapter and UKAS calibration certificates
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Preset function ±
- ABS function
- Data output RS232
Contents:
- 1 piece holder with measuring probe
- 1 piece Sylvac display unit D62S
- 1 piece power supply unit
- 11 pieces measuring heads (1 piece of each measuring range 20-24 / 24-28 / 28-32 / 32-38 / 38-44 / 44-50 / 50-60 / 60-70 / 70-80 / 80-90 / 90-100mm)
- 6 pieces setting rings (1 piece of each Ø 24 / 32 / 44 / 60 / 80 / 100mm)
! Single measuring probes with and without holder, sets without display unit, measuring heads up to Ø 310mm or special measuring faces (threads, serrations, recesses, deep hole bores etc.), depth stops, measuring depth extensions and handle adapters to use measuring probes or display units of other manufacturers on request.
Digital internal bore gauge sets ULTIMA in box including setting rings and UKAS calibration certificates
Size: | 20-100/0,0001/69/72/80mm |
---|---|
Article number: | 2505507 |
Brand: | BOWERS |
Manufacturer number: | USET10 |
Measuring range: | 20-100mm/.8-4 inch |
Reading: | 0,0001mm/.000001inch |
Weight: | 8kg |
Alle Varianten
Digital internal bore gauge sets ULTIMA in box
including setting rings and UKAS calibration certificates
20-100/0,0001/69/72/80mm
Article number: 2505507
€10,676.00*
Prices excl. VAT and shipping costs
Custom price after Login
