Illustration similar ©ULTRA Germany

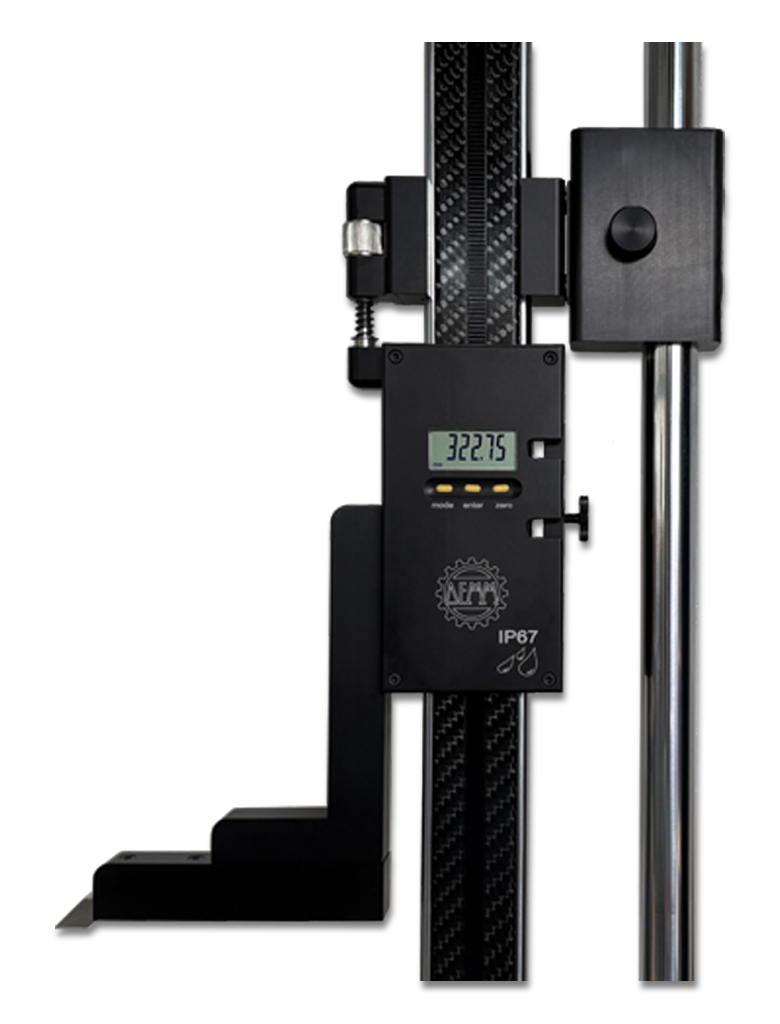

Digital height and marking gauges ATENA CARBON in box Double column, with fine and quick adjustment
- Works standard
- Protection class IP54, Sylvac System
- Cast iron base with flat column made of hardened stainless steel Ø 25mm
- Flat carbon fibre bar with high strength of shape 47x16mm
- Extremely low weight

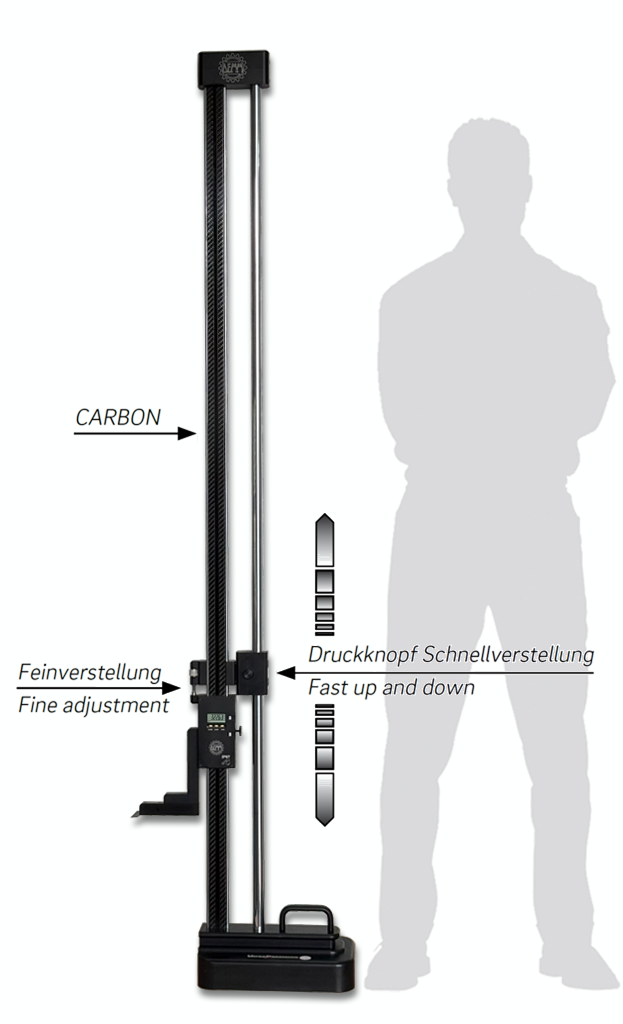

- Fast up and down with central push button
- Fine adjustment and clamping
- Large LCD display
- Steel scriber, hardened
Delivered in a case
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Preset function ±
- Hold function
- Data output Opto
! Scribers with special lengths on request.
Digital height and marking gauges ATENA CARBON in box Double column, with fine and quick adjustment
| Size: | 1500/0,01m IP54 |
|---|---|
| Article no.: | 1808501 |
| Brand: | DEMM |
| Manufacturer number: | 00186 |
| Reading: | 0,01mm / .0005 inch |
| Measuring range: | 1500mm / 80 inch |
| Weight: | 18kg |
general.loadingIndicator
general.loadingIndicator
general.loadingIndicator
general.loadingIndicator
Alle Varianten
Digital height and marking gauges ATENA CARBON in box
Double column, with fine and quick adjustment
1500/0,01m IP54
Article no.: 1808501
€5,911.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 7 weeks
Shipping method:
Parcel delivery service
Weight:
18kg
EAN / GTIN:
4066918069252
Manufacturer number:
00186
Customs code:
90172039
