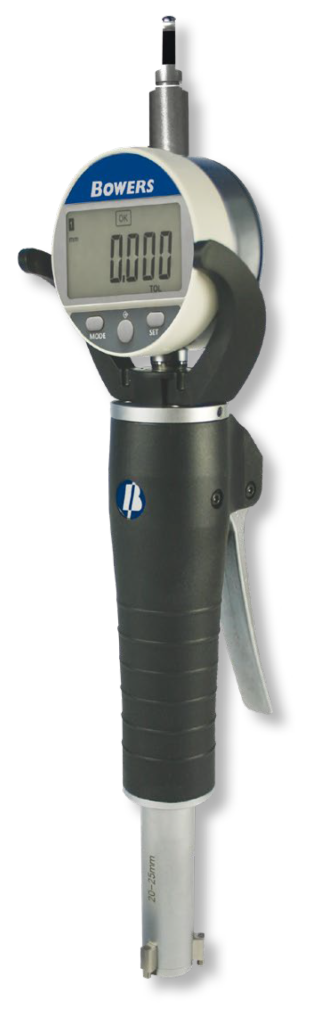

Digital hand lever bore gauges 3-point XTL in box including setting ring and UKAS calibration certificate
- DIN 863
- Excellent for vertical bore measurement
- Tungsten carbide-tipped measuring faces (< 12.5mm with steel measuring faces hardened)
- Blind bore measurement from 12.5mm
- Movable measuring jaws through hand lever
- Constant measuring force, spring loaded
- Sylvac System, large LCD display
- Self-centering measuring heads for good positive feel
Delivered in a case, including dial gauge, measuring head, setting ring gauge and UKAS calibration certificate
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Preset function ±
- Max. / min. memory
- Hold function
- Data output Proximity
! Measuring ranges > 100mm, depth extensions and measuring heads with special measuring faces (threads, grooves, spherical, serrations, 2-point etc.), digital dial indicators IP65 and digital dial indicators with bluetooth function for bore gauges > 20mm on request.
Digital hand lever bore gauges 3-point XTL in box including setting ring and UKAS calibration certificate
Size: | 20-25/0,001/66mm |
---|---|
Article number: | 2504206 |
Brand: | BOWERS |
Manufacturer number: | XTL20M |
Reading: | 0,001mm/.00005 inch |
Measuring range: | 20-25mm/.8–1 inch |
Weight: | 1.93kg |


Alle Varianten
Digital hand lever bore gauges 3-point XTL in box
including setting ring and UKAS calibration certificate
20-25/0,001/66mm
Article number: 2504206
€1,610.00*
