Digital hand lever bore gauge sets 3-point XTL in box including setting rings and UKAS calibration certificate
- DIN 863
- Excellent for vertical bore measurement
- Tungsten carbide-tipped measuring faces (< 12.5mm with steel measuring faces hardened)
- Blind bore measurement from 12.5mm
- Movable measuring jaws through hand lever
- Constant measuring force, spring loaded
- Sylvac System, large LCD display
- Without Bluetooth function
- Self-centering measuring heads for good positive feel

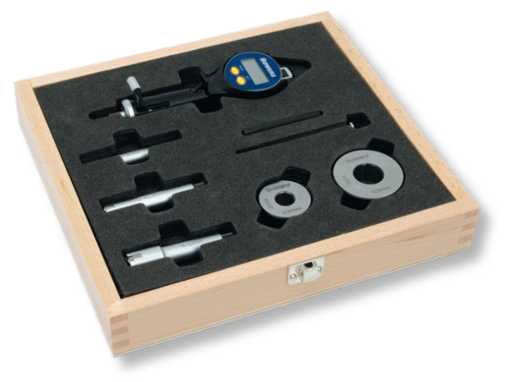

Delivered in a case, including dial gauge, measuring heads, setting rings and UKAS calibration certificate
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Preset function ±
- Max. / min. memory
- Hold function
- Data output Opto
Contents:
- 1 piece Digital readout unit with dial gauge
- 2 pieces measuring heads (1 piece of each measuring range 6-8 / 8-10mm)
- 1 piece setting ring Ø 8mm
! Measuring ranges > 100mm, depth extensions and measuring heads with special measuring faces (threads, grooves, spherical, serrations, 2-point etc.), digital dial indicators IP65 and digital dial indicators with bluetooth function for bore gauges > 20mm on request.
Digital hand lever bore gauge sets 3-point XTL in box including setting rings and UKAS calibration certificate
| Size: | 20-50/0,001/66/80mm |
|---|---|
| Article no.: | 2504503 |
| Brand: | BOWERS |
| Manufacturer number: | SXTL5M |
| Reading: | 0,001mm/.00005 inch |
| Measuring range: | 20-50mm/.8-2 inch |
| Accuracy: | 0,004mm |
| Data output: | Proximity |
| Measuring depths: | 66/80mm |
| Measuring force: | 35-15N |
| Number of measuring heads: | 3 |
| Setting rings: | Ø 20/35mm |
| Size A: | 0,5mm |
| Weight: | 3.43kg |
Digital hand lever bore gauge sets 3-point XTL in box including setting rings and UKAS calibration certificate 20-50/0,001/66/80mm
Article no.: 2504503
