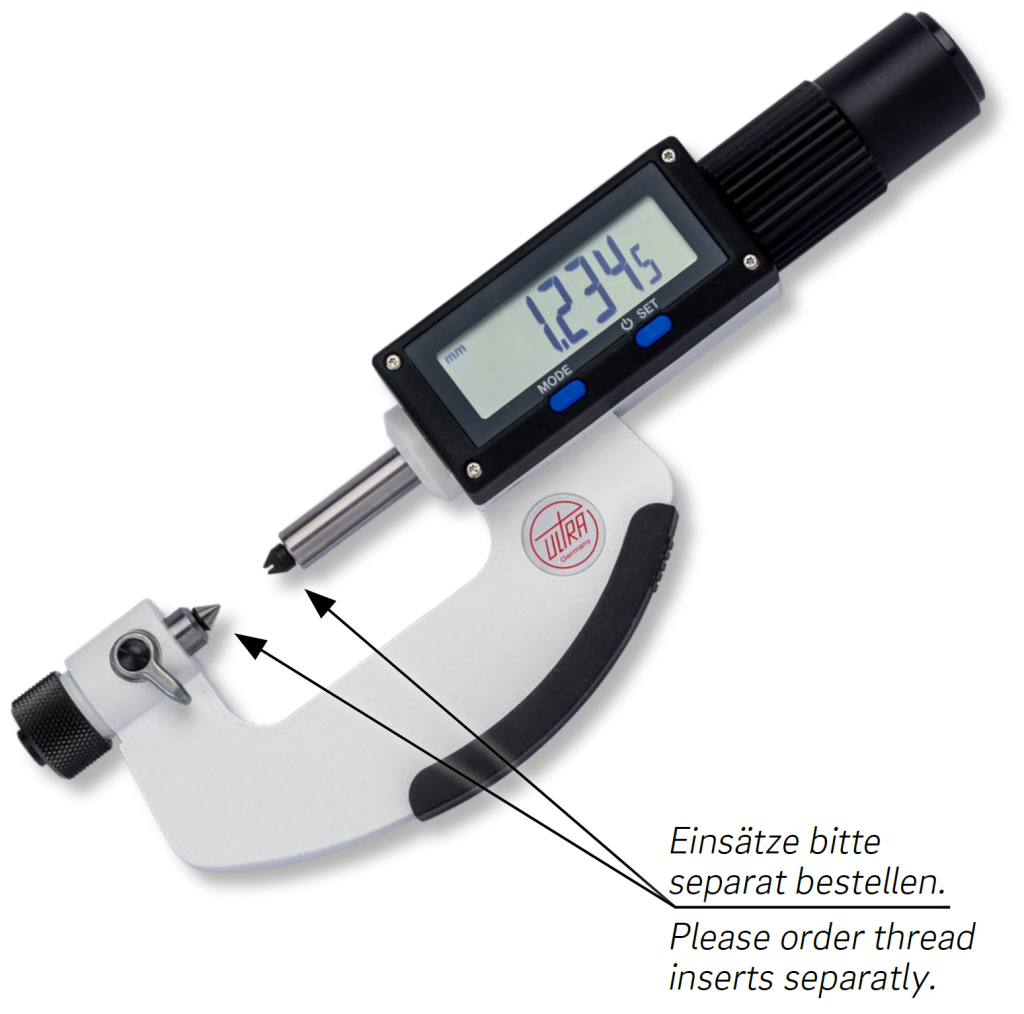

    Digital external micrometers in box for thread measurement, mounting hole for inserts Ø 3,5mm
- DIN 863
- Protection class IP65, Sylvac System
- Large LCD display
- Measuring faces with bore Ø 3.5mm
- Non-turning spindle
- Spindle pitch 2.0mm
- Sturdy ratchet with measuring force approximately 7N, spindle clamping with lever
- Insulated pads
Delivered in a case, without setting gauge and without thread inserts
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Reversible reading 0.01/0.001/0.0005mm/.0005“/.00005“/.00002“
- Reversible counting diretion
- Preset function
- Max. / min. memory
- Hold function
- Data output Proximity
! Please order setting gauges No. 2047 10. (60°) or No. 2047 20. (55°) separatly.
! Larger measuring ranges, spindle pitch 0.5mm or 1.0mm and sender + receiver for wireless data transmission on request.
Digital external micrometers in box for thread measurement, mounting hole for inserts Ø 3,5mm
| Size: | 0-30/0,0005mm IP65 |
|---|---|
| Article no.: | 2045151 |
| Brand: | ULTRA |
| Reading: | 0,0005mm/.00002 inch |
| Lifting: | Without |
| Measuring range: | 0-30mm / 0-1 inch |
| Weight: | 0.37kg |

                                                                                                                                            Ø 3,5x13,5mm, for external micrometer No. 2045 15. until 18.
Alle Varianten
            Digital external micrometers in box

                for thread measurement, mounting hole for inserts Ø 3,5mm

                0-30/0,0005mm IP65

        Article no.: 2045151
€1,026.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login
