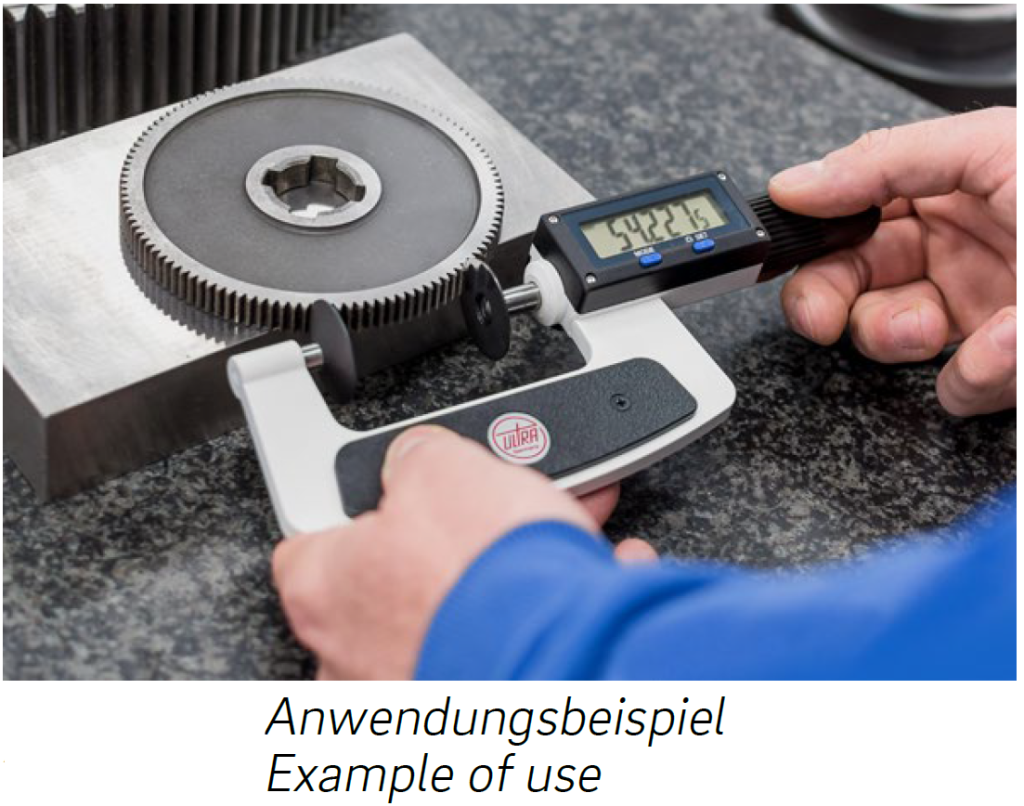

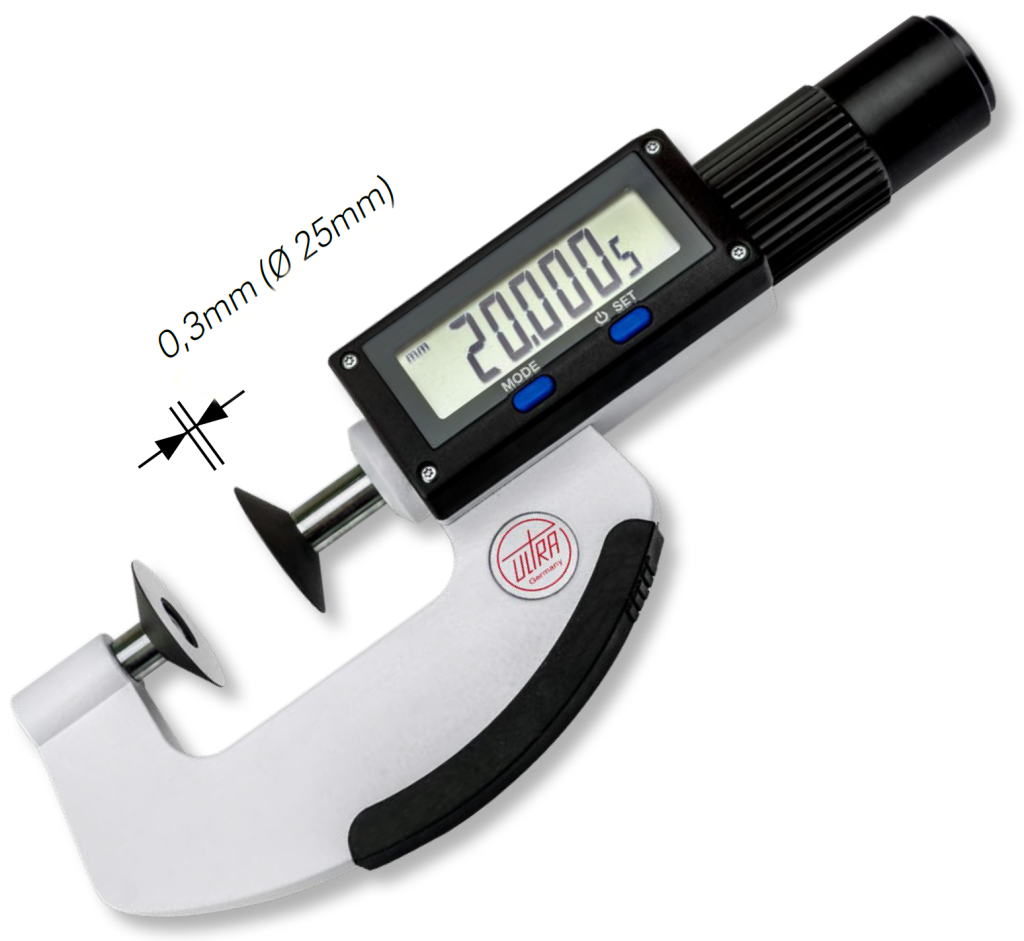

Digital external micrometers in box for gear tooth measurement, with disc measuring faces Ø25mm

  • DIN 863
  • Protection class IP65, Sylvac System
  • Large LCD display
  • Hardened steel measuring faces
  • Non-turning spindle
  • Spindle pitch 2.0mm
  • Sturdy ratchet with measuring force approximately 7N
  • Insulated pads

Delivered in a case, from 100mm including setting gauge

Functions:

  • On/Off
  • mm/inch commutation
  • Zero setting at any position
  • Reversible reading 0.01/0.001/0.0005mm/.0005“/.00005“/.00002“
  • Reversible counting diretion
  • Preset function
  • Max. / min. memory
  • Hold function
  • Data output Proximity

! Other disc diameters, spindle pitch 0.5mm or 1.0mm and sender + receiver for wireless data transmission on request.

Digital external micrometers in box for gear tooth measurement, with disc measuring faces Ø25mm
Size: 0-30/0,0005mm IP65
Article number: 2054101
Brand: ULTRA
Reading: 0,0005mm/.00002 inch
Lifting: Without
Measuring range: 0-30mm / 0-1 inch
Weight: 0.36kg
general.loadingIndicator
general.loadingIndicator

Alle Varianten

Digital external micrometers in box
for gear tooth measurement, with disc measuring faces Ø25mm
0-30/0,0005mm IP65

Article number: 2054101

€1,417.00*

approx. 7 weeks
Shipping method: Parcel delivery service Parcel delivery service
Weight: 0.36kg
EAN / GTIN: 4066918083401
Customs code: 90173000
Lifting
Measuring range
Reading
