                                Illustration similar ©ULTRA Germany

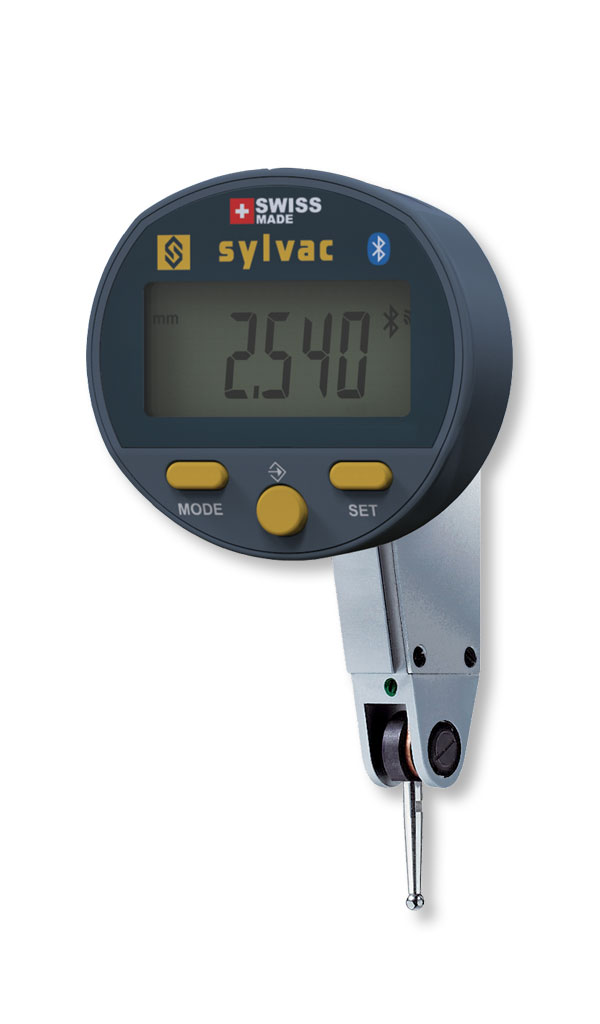

                        Digital dial test indicators (lever type) S_Dial TEST Smart Bluetooth
- Works standard
- Protection class IP54
- LCD display, analogue/digital, turnable 270°
- With Bluetooth function for a wireless data transmission
- Repeatability 0.001mm
- Outer ring Ø 45mm
- Clamping shaft Ø 8mm h6
- Dovetail slide x 3
- Probe swivelling through 270°, tungsten carbide ball Ø 2mm, M 1.4
Delivered in a cardboard box including manufacturer certificate. Simply scan the QR code on the housing, go to Calibration certificate and save.
Functions:
- On/Off
- Auto-Off
- mm/inch commutation
- Reversible reading 0.01 / 0.001mm
- Zero setting at any position
- ABS function
- Hold function
- ± Preset function
- MIN. / MAX. / DELTA. memory
- Conversion factor
- Reversible measuring direction
- Key lock
- Data output Proximity
Digital dial test indicators (lever type) S_Dial TEST Smart Bluetooth
| Size: | 0,8/0,001/12,5mm Ø45mm IP54 |
|---|---|
| Article no.: | 1339601 |
| Brand: | SYLVAC |
| Manufacturer number: | 805.4321 |
| Reading: | 0,001mm |
| Bluetooth: | With |
| Probe length: | 12,5mm |
| Weight: | 0.07kg |
Alle Varianten
            Digital dial test indicators (lever type) S_Dial TEST Smart

                Bluetooth

                0,8/0,001/12,5mm Ø45mm IP54

        Article no.: 1339601
€665.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login




                                                            approx. 2 weeks




                        Shipping method:


                                                    Parcel delivery service






                                                            Weight:
                                                                0.07kg


                                                EAN / GTIN:
                                                    4066918047557


                                                Manufacturer number:
                                                    805.4321


                                                Customs code:
                                                    90178090
