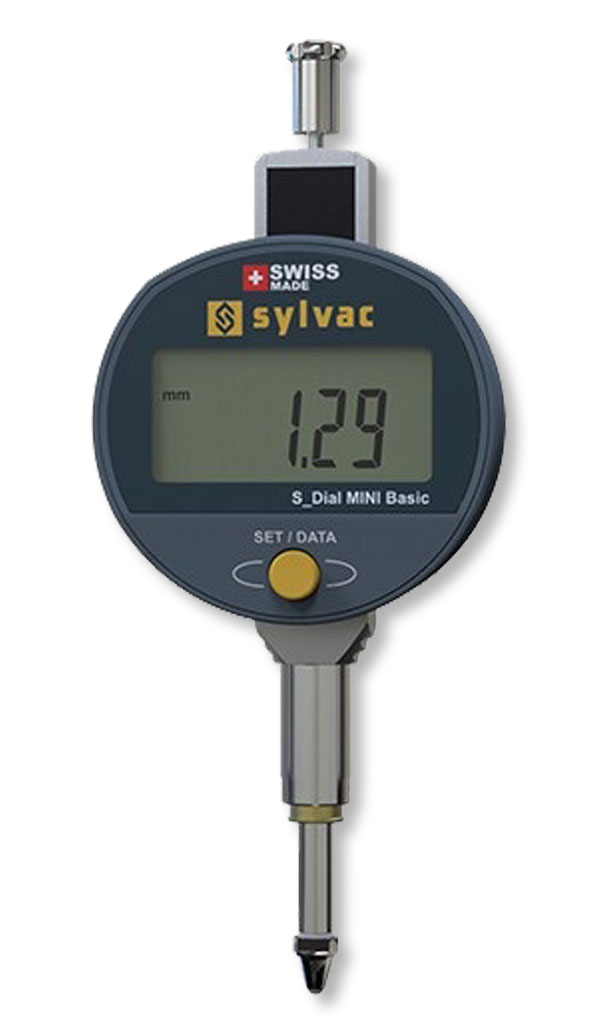

                        Digital dial indicators, small, S_Dial MINI S Basic USB / RS232
- Works standard
- Protection class IP54
- Large LCD display
- Inductive measuring system
- Repeatability 0.002mm
- Plastic housing Ø 45mm
- Clamping shaft Ø 8mm h6
- Dovetail slide on the back side
- Interchangeable measuring insert M2.5
Delivered in a cardboard box
Functions:
- On/Off
- Auto-Off
- mm/inch commutation
- Zero setting at any position
- ± Preset function
- Reversible measuring direction
- Key lock
- Data output
! S_Dial MINI P Basic with protection by rubber below on request.
Digital dial indicators, small, S_Dial MINI S Basic USB / RS232
| Size: | 12,5/0,01mm Ø45mm IP54 |
|---|---|
| Article no.: | 1303301 |
| Brand: | SYLVAC |
| Manufacturer number: | 805.4121 |
| Measuring range: | 12,5mm / .5 inch |
| Reading: | 0,01mm / .0005 inch |
| Bluetooth: | Without |
| Weight: | 0.13kg |
                                            general.loadingIndicator

                                    Alle Varianten
            Digital dial indicators, small, S_Dial MINI S Basic

                USB / RS232

                12,5/0,01mm Ø45mm IP54

        Article no.: 1303301
€420.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login




                                                            approx. 2 weeks




                        Shipping method:


                                                    Parcel delivery service






                                                            Weight:
                                                                0.13kg


                                                EAN / GTIN:
                                                    4066918044693


                                                Manufacturer number:
                                                    805.4121


                                                Customs code:
                                                    90178090
