                                Illustration similar ©ULTRA Germany

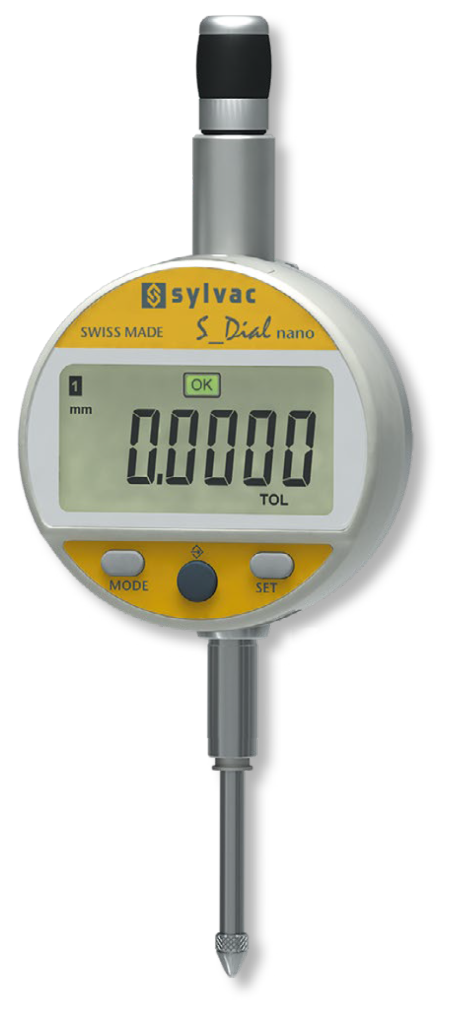

                        Digital dial indicators S_Dial Work NANO with LED tolerance signal lights
- Works standard
- Protection class IP54
- Inductive measuring system
- Large LCD display, turnable up to 270°
- Individually programmable key with required functions
- Repeatability 0.0005mm
- Aluminium housing Ø 60mm
- Clamping shaft Ø 8mm h6
- Interchangeable measuring insert M2.5
Delivered in a cardboard box including manufacturer certificate. Simply scan the QR code on the housing, go to Calibration certificate and save.
Functions:
- On/Off
- Auto-Off
- mm/inch commutation
- Zero setting at any position (2 reference points)
- Hold function
- ± Preset function
- MIN. / MAX. memory
- Tolerance signal lights LED red/green/yellow
- Reversible measuring direction
- ABS function
- Key lock
- Data output Proximity
Digital dial indicators S_Dial Work NANO with LED tolerance signal lights
| Size: | 12,5/0,0001mm Ø60mm |
|---|---|
| Article no.: | 1300101 |
| Brand: | SYLVAC |
| Manufacturer number: | 805.5306 |
| Measuring range: | 12,5mm / .5 inch |
| Bluetooth: | Without |
| Reading: | 0,0001mm / .00005 in |
| Weight: | 0.21kg |
                                            general.loadingIndicator

                                    Alle Varianten
            Digital dial indicators S_Dial Work NANO

                with LED tolerance signal lights

                12,5/0,0001mm Ø60mm

        Article no.: 1300101
€1,025.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login




                                                            approx. 2 weeks




                        Shipping method:


                                                    Parcel delivery service






                                                            Weight:
                                                                0.21kg


                                                EAN / GTIN:
                                                    4066918044525


                                                Manufacturer number:
                                                    805.5306


                                                Customs code:
                                                    90178090
