Illustration similar ©ULTRA Germany

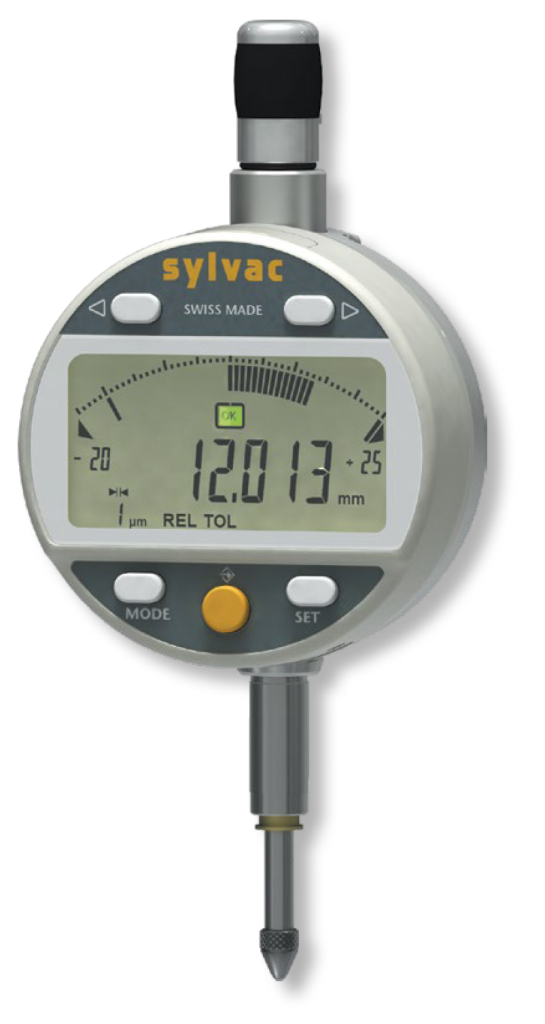

Digital dial indicators S_Dial Work ANALOG with combined scale
- Works standard
- Inductive measuring system
- Large LCD display, turnable up to 270°
- Repeatability 0.002mm
- Aluminium housing Ø 60mm
- Clamping shaft Ø 8mm h6
- Interchangeable measuring insert M2.5
Delivered in a cardboard box including manufacturer certificate. Simply scan the QR code on the housing, go to Calibration certificate and save.
Functions :
- On/Off
- Auto-Off
- mm/inch commutation
- Zero setting at any position (2 reference points)
- Hold function
- ± Preset function
- MIN. / MAX. memory
- Adjustable tolerance marks
- Tolerance signal lights LED red/green/yellow
- Reversible measuring direction
- ABS function
- Key lock
- Data output Proximity
Digital dial indicators S_Dial Work ANALOG with combined scale
| Size: | 12,5/0,001mm Ø60mm |
|---|---|
| Article no.: | 1304101 |
| Brand: | SYLVAC |
| Manufacturer number: | 805.5307 |
| Measuring range: | 12,5mm / .5 inch |
| Reading: | 0,001mm / .00005 inc |
| Weight: | 0.21kg |
general.loadingIndicator
Alle Varianten
Digital dial indicators S_Dial Work ANALOG
with combined scale
12,5/0,001mm Ø60mm
Article no.: 1304101
€808.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service
Weight:
0.21kg
EAN / GTIN:
4066918044730
Manufacturer number:
805.5307
Customs code:
90178090
