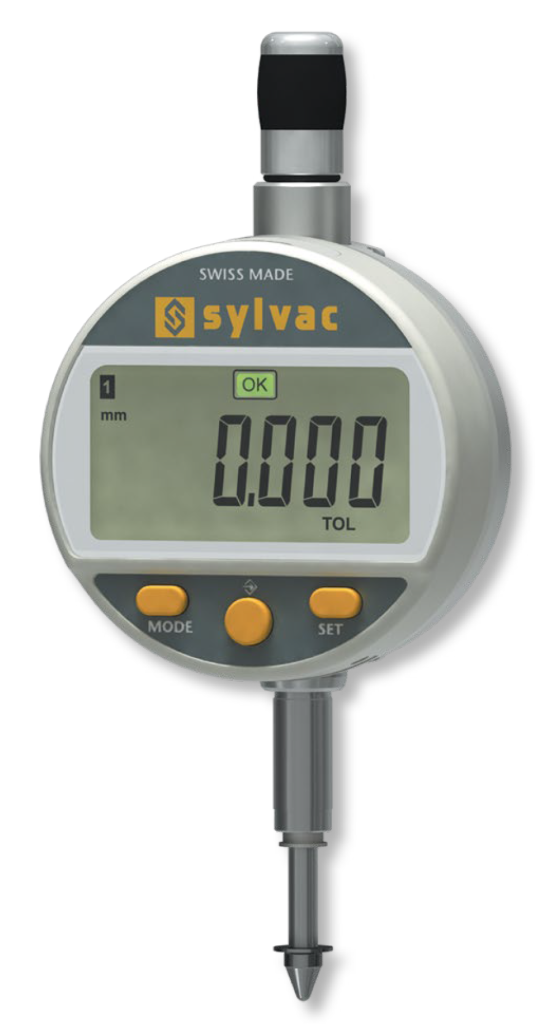

Illustration similar ©ULTRA Germany
Digital dial indicators S_Dial Work ADVANCED with LED tolerance signal lights
- Works standard
- Protection class IP54
- Inductive measuring system
- Large LCD display, turnable up to 270°
- Individually programmable key with required functions
- Repeatability 0.002mm
- Aluminium housing Ø 60mm
- Clamping shaft Ø 8mm h6
- Interchangeable measuring insert M2.5
Delivered in a cardboard box
Functions :
- On/Off
- Auto-Off
- mm/inch commutation
- Zero setting at any position (2 reference points)
- Hold function
- ± Preset function
- MIN. / MAX. memory
- Conversion factor
- Tolerance signal lights LED red/green/yellow
- Reversible measuring direction
- ABS function
- Key lock
- Data output Proximity
Digital dial indicators S_Dial Work ADVANCED with LED tolerance signal lights
Size: | 12,5/0,01mm Ø60mm IP54 |
---|---|
Article number: | 1301101 |
Brand: | SYLVAC |
Manufacturer number: | 805.5201 |
Measuring range: | 12,5mm / .5 inch |
Reading: | 0,01mm / .0005 inch |
Bluetooth: | Without |
Weight: | 0.21kg |
general.loadingIndicator
Alle Varianten
Digital dial indicators S_Dial Work ADVANCED
with LED tolerance signal lights
12,5/0,01mm Ø60mm IP54
Article number: 1301101
€576.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service

Weight:
0.21kg
EAN / GTIN:
4066918044549
Manufacturer number:
805.5201
Customs code:
90178090
