Illustration similar ©ULTRA Germany

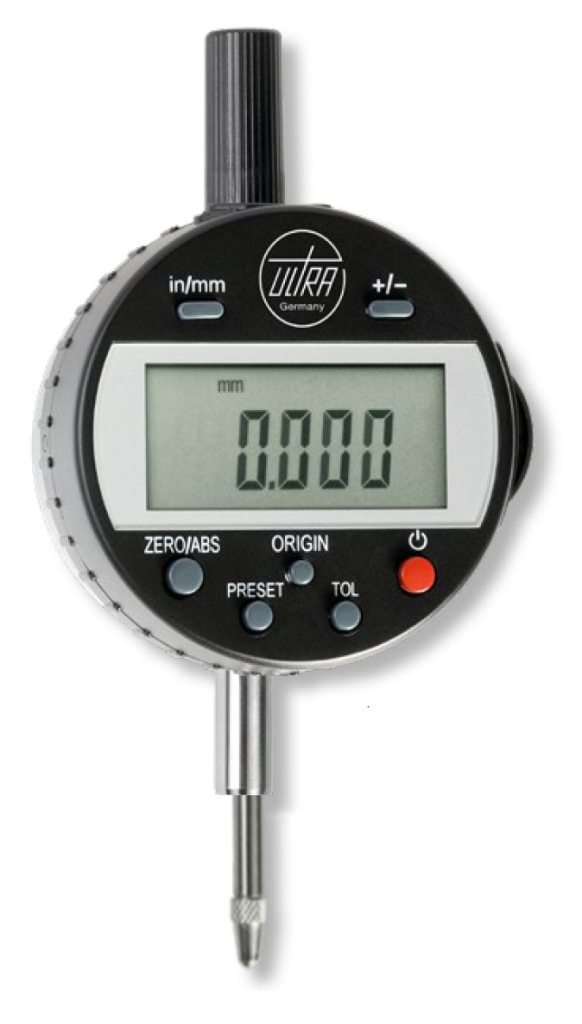

Digital dial indicators IP65, ULTRA active
- Works standard
- Protection class IP65
- Large LCD display, turnable up to 270°
- Aluminium housing Ø 58mm
- Clamping shaft Ø 8mm h6
- Interchangeable measuring insert M2.5
- Battery CR 2032 3V
Delivered in cardboard box
Functions:
- On/Off, mm/inch commutation, Zero setting at any position, Tolerance pre-selection, ABS function, Reversible measuring direction, Data output DIGIMATIC
! Upgradeable Lifting device for digital dial indicator 12.5mm.
! Lifting device no. 6301182 for measuring ranges 25mm and 50mm just deliverable in case of order new digital dial indicator.
Digital dial indicators IP65, ULTRA active
| Size: | 12,5/0,01mm Ø58mm |
|---|---|
| Article no.: | 6301101 |
| Brand: | ULTRA |
| Measuring range: | 12,5mm / .5 inch |
| Reading: | 0,01mm / .0005 inch |
| Lifting device: | Without |
| Weight: | 0.36kg |
USB interfaces ULTRA active for calipers No. 6850 11.,
dial gauges 6301 1.. and external micrometers 6200 1..
dial gauges 6301 1.. and external micrometers 6200 1..
Interface EN QWERTY
general.loadingIndicator
Sender ULTRA active
for calipers No. 6850 11. and dial gauges No. 6301 1..
for calipers No. 6850 11. and dial gauges No. 6301 1..
for No. 6850 11. and 6301 1..
general.loadingIndicator
USB receiver ULTRA active
for calipers No. 6850 11. and dial gauges No. 6301 1..
for calipers No. 6850 11. and dial gauges No. 6301 1..
for No. 6850 11. and 6301 1..
general.loadingIndicator
general.loadingIndicator
general.loadingIndicator
USB interfaces ULTRA active for calipers No. 6850 11.,
dial gauges 6301 1.. and external micrometers 6200 1..
dial gauges 6301 1.. and external micrometers 6200 1..
Interface DE QWERTZ
general.loadingIndicator
Alle Varianten
Digital dial indicators IP65, ULTRA active
12,5/0,01mm Ø58mm
Article no.: 6301101
€128.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 1 week
Shipping method:
Parcel delivery service
Weight:
0.36kg
EAN / GTIN:
4066918102348
Customs code:
90178090
