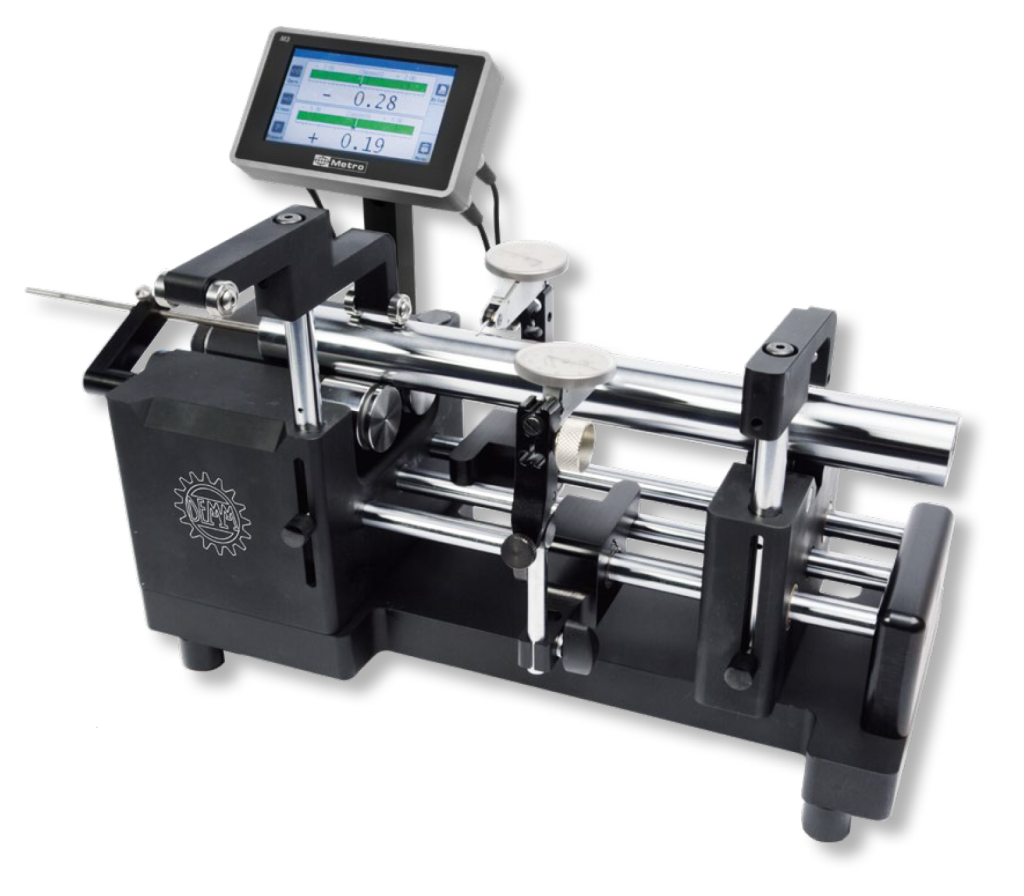

Digital concentricity testers SIMMY PLUS with rollers, accuracy 0,002mm
- Works standard
- For checking concentricity and wobble
- Concentricity accuracy 0.002mm
- Precision rollers Ø30mm with groove made of hardened tool steel
- Aluminium housing, anodized
- Hard chromed steel bars for measuring stand sliding
- Spring loaded work piece clamping system
- Work piece anvil adjustable in length and height

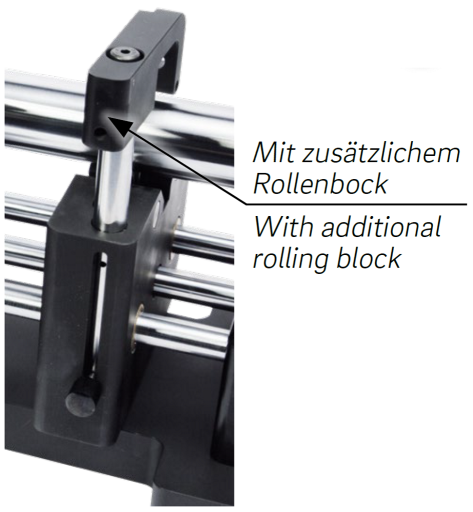

- Additional movable rolling block with clamping system
- 3 measuring stands for inductive probes or dial test indicators, mounting hole Ø 8mm
Delivered in individual packages incl. display unit and 2 pieces inductive probes
Functions:
- Fast checking with one or two inductive probes depending on application
- Large display 80x130x20mm with 2 measuring value indications, Metro M3
- Data transmission without additional software and driver
Digital concentricity testers SIMMY PLUS with rollers, accuracy 0,002mm
| Size: | Ø10-100mm |
|---|---|
| Article number: | 1559612 |
| Brand: | DEMM |
| Manufacturer number: | 00882 PLUS |
| Dimension: | 350x118x140mm |
| Workpiece Ø: | 10-100mm |
| Weight: | 13kg |
Alle Varianten
Digital concentricity testers SIMMY PLUS
with rollers, accuracy 0,002mm
Ø10-100mm
Article number: 1559612
€9,940.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 6 weeks
Shipping method:
Parcel delivery service
Weight:
13kg
EAN / GTIN:
4066918059994
Manufacturer number:
00882 PLUS
Customs code:
90318080
