Illustration similar ©ULTRA Germany

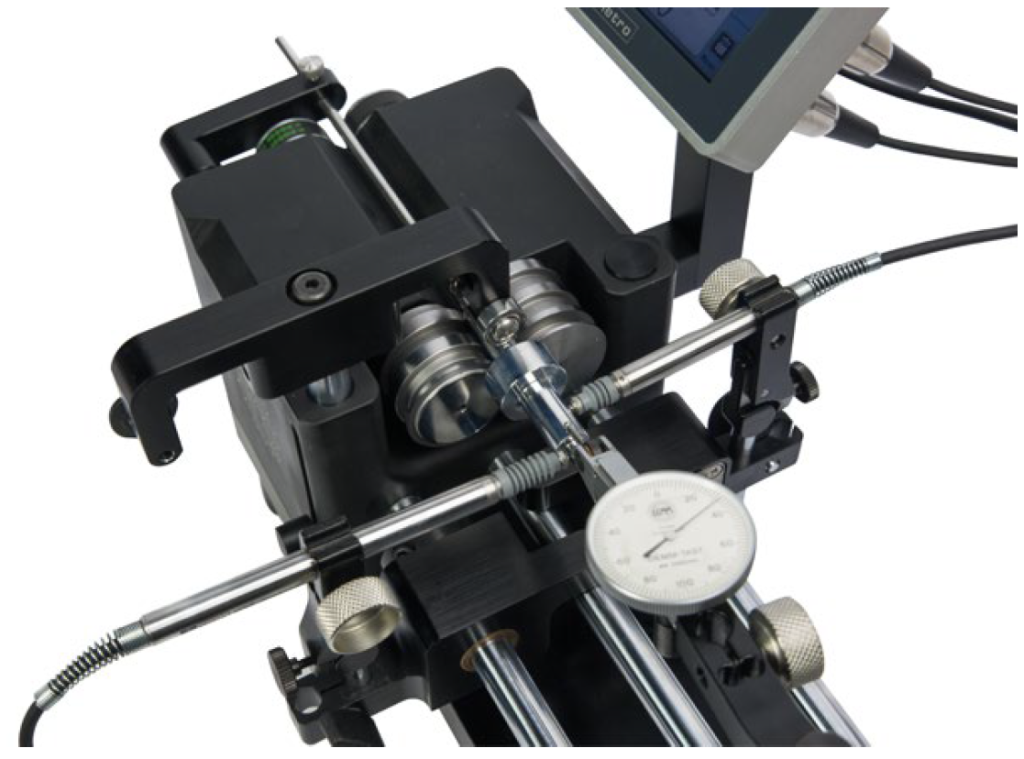

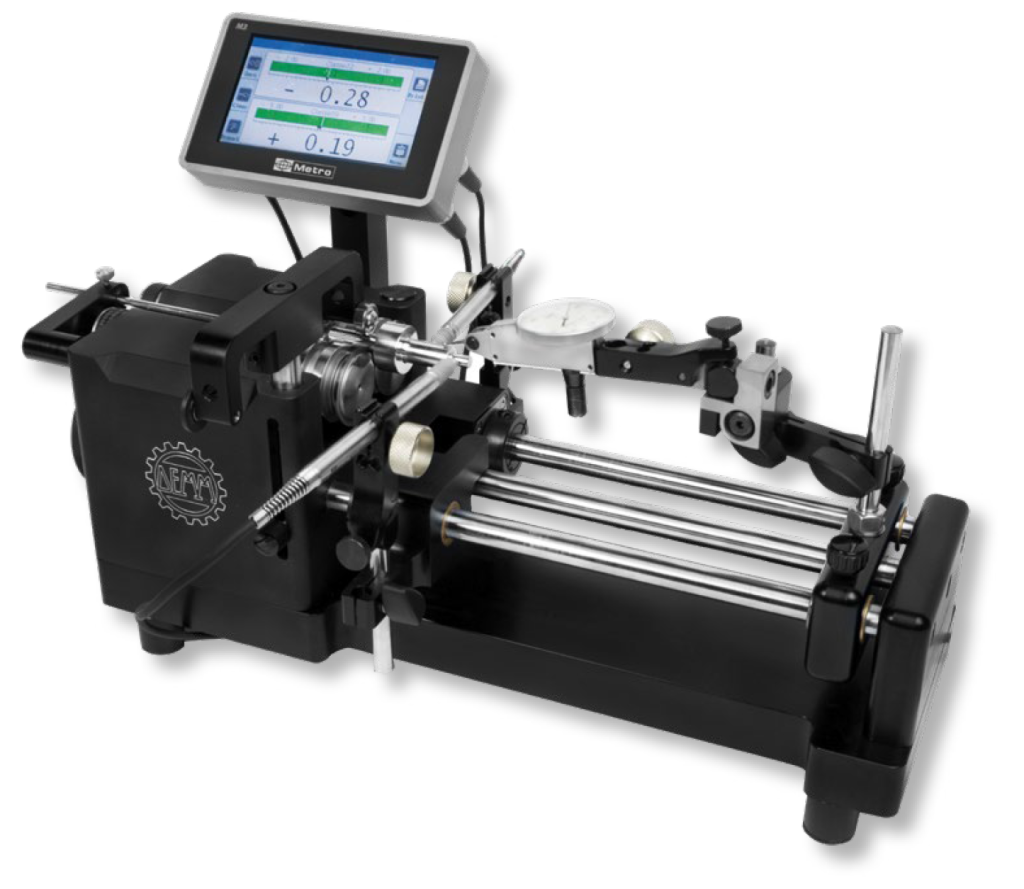

Digital concentricity testers SIMMY PLUS Accuracy 0,002mm
- Works standard
- For checking concentricity and wobble
- Concentricity accuracy 0.002mm
- Precision rollers Ø30mm with groove made of hardened tool steel
- Aluminium housing, anodized
- Hard chromed steel bars for measuring stand sliding
- Spring loaded work piece clamping system
- Work piece anvil adjustable in length and height
- 3 measuring stands for inductive probes or dial test indicators, mounting hole Ø 8mm
Delivered in individual packages incl. display unit and 2 pieces inductive probes
Functions:
- Fast checking with one or two inductive probes depending on application
- Large display 80x130x20mm with 2 measuring value indications, Metro M3
- Data transmission without additional software and driver
Digital concentricity testers SIMMY PLUS Accuracy 0,002mm
| Size: | Ø1,5-50mm |
|---|---|
| Article number: | 1559601 |
| Brand: | DEMM |
| Manufacturer number: | 00879 PLUS |
| Dimension: | 350x118x140mm |
| Workpiece Ø: | 1,5-50mm |
| Weight: | 9.1kg |
Alle Varianten
Digital concentricity testers SIMMY PLUS
Accuracy 0,002mm
Ø1,5-50mm
Article number: 1559601
€7,508.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 6 weeks
Shipping method:
Parcel delivery service
Weight:
9.1kg
EAN / GTIN:
4066918059963
Manufacturer number:
00879 PLUS
Customs code:
90318080
