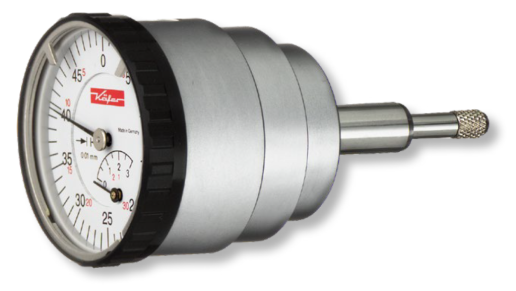

Dial gauges with back plungers in box

  • Works standard
  • Accuracy 0,01mm

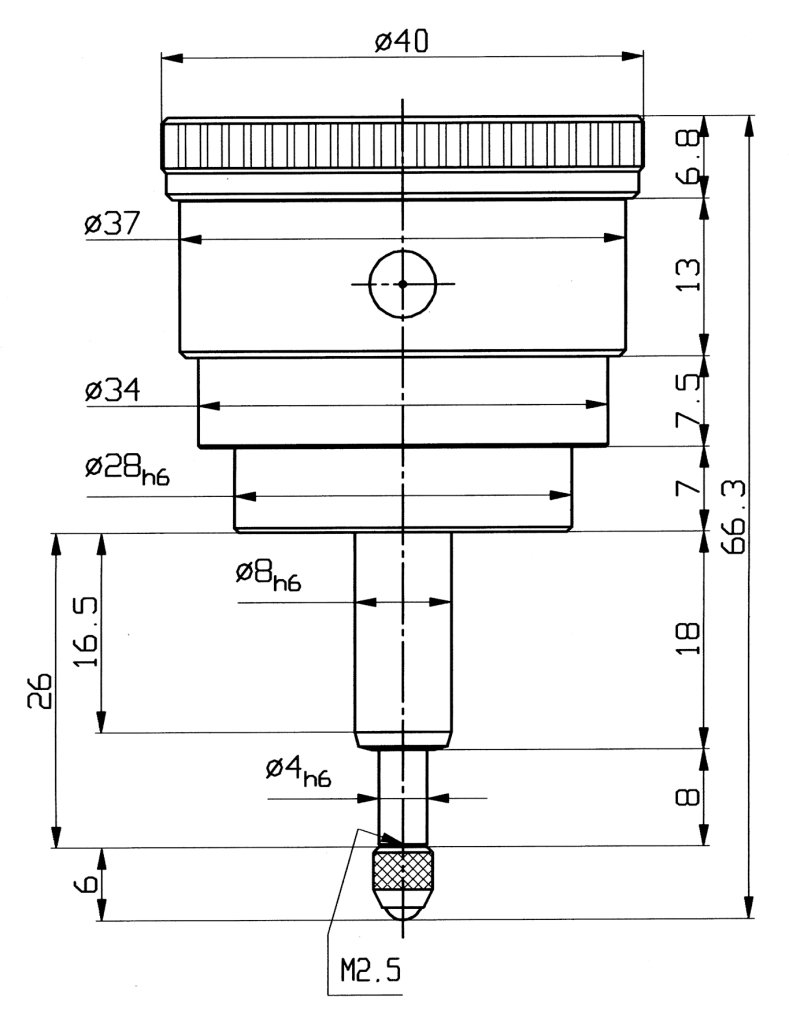

  • Dimensions acc. DIN EN ISO 463
  • Metal housing
  • Adjustable tolerance marks
  • Clamping shaft Ø 8mm h6
  • Interchangeable measuring insert M2.5

Delivered in a case

! Versions with increased or reduced measuring force, special dials and larger shaft lengths on request.

Dial gauges with back plungers in box
Size: 3/0,01mm Ø40mm
Article number: 1326101
Brand: KÄFER
Manufacturer number: KM 4 R
Diameter: 40mm
Reading: 0,01mm
Measuring range: 3mm
Weight: 0.2kg

Alle Varianten

Dial gauges with back plungers in box

3/0,01mm Ø40mm

Article number: 1326101

€151.00*

approx. 2 weeks
Shipping method: Parcel delivery service Parcel delivery service
Weight: 0.2kg
EAN / GTIN: 4066918045522
Manufacturer number: KM 4 R
Customs code: 90318020
Diameter
Measuring range
Reading

Configuration & Options

Share
€19.20
€31.30
Total €151.00*
Delivery Time
Quantity:
