                                Illustration similar ©ULTRA Germany

                        Dial gauges, large in box
- Works standard
- Dimensions acc. DIN EN ISO 463
- Metal housing
- Adjustable tolerance marks (no 0.1mm reading and Ø 100mm)

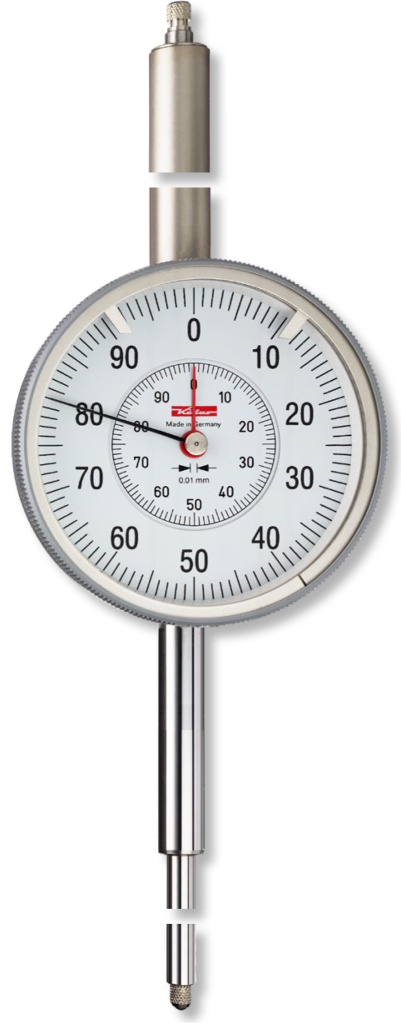

- Clamping shaft Ø 8mm h6 (except No. 1322 114 = Ø 10mm h6)
- Interchangeable measuring insert M2.5
Delivered in a case
! Versions with increased or reduced measuring force, special dials and larger shaft lengths on request.

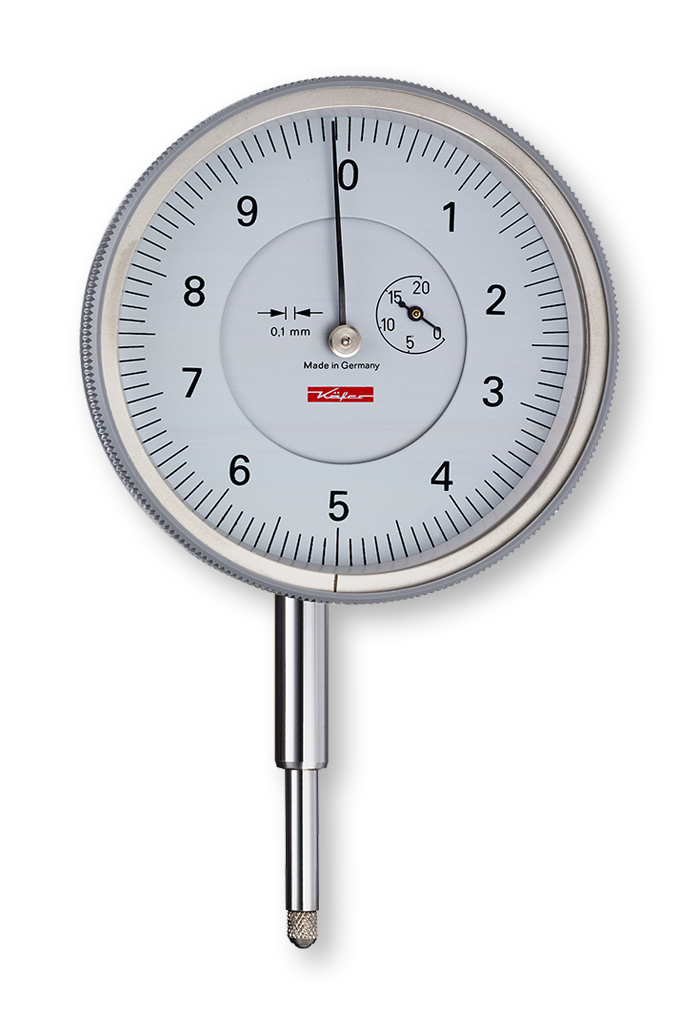

Dial gauges, large in box
| Size: | 20/0,1mm Ø80mm |
|---|---|
| Article no.: | 1322104 |
| Brand: | KÄFER |
| Manufacturer number: | GM 10/80 |
| Shock proof: | Without |
| Reading: | 0,1mm |
| Measuring range: | 20mm |
| Diameter: | 80mm |
| Weight: | 0.3kg |
Alle Varianten
            Dial gauges, large in box



                20/0,1mm Ø80mm

        Article no.: 1322104
€127.00*

                                        Prices excl. VAT and shipping costs



    Custom price after Login




                                                            approx. 2 weeks




                        Shipping method:


                                                    Parcel delivery service






                                                            Weight:
                                                                0.3kg


                                                EAN / GTIN:
                                                    4066918045164


                                                Manufacturer number:
                                                    GM 10/80


                                                Customs code:
                                                    90318020
