Illustration similar ©ULTRA Germany

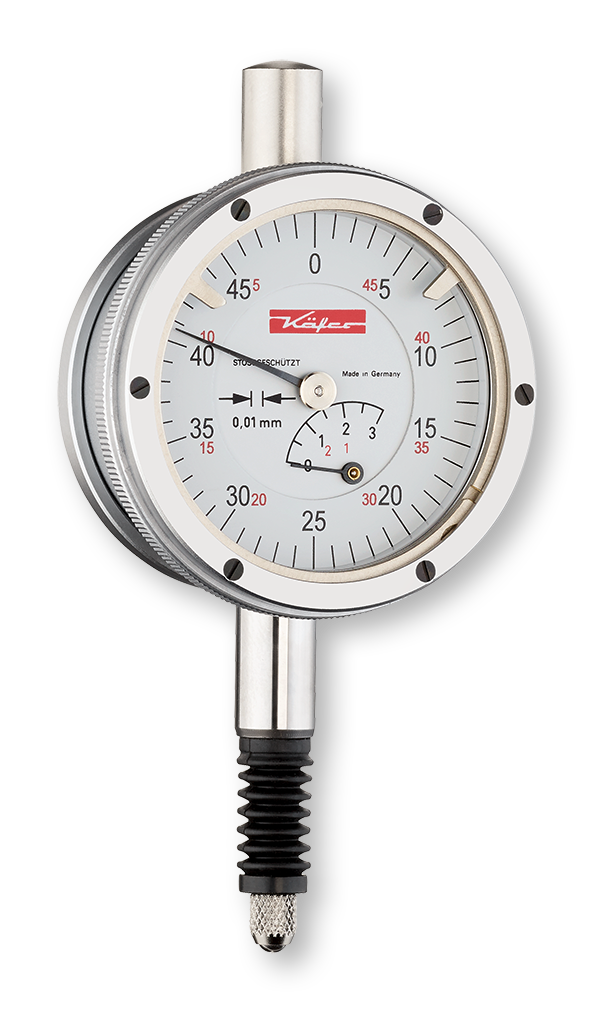

Dial gauges analog to DIN 878 in box shock, water- and oilproof
- Shockproof, water- and oilproof
- Metal housing and outer ring
- Adjustable tolerance marks
- Clamping shaft Ø 8mm h6
- Interchangeable measuring insert M2.5
1324 101 - 1324 102: Analog to DIN 878

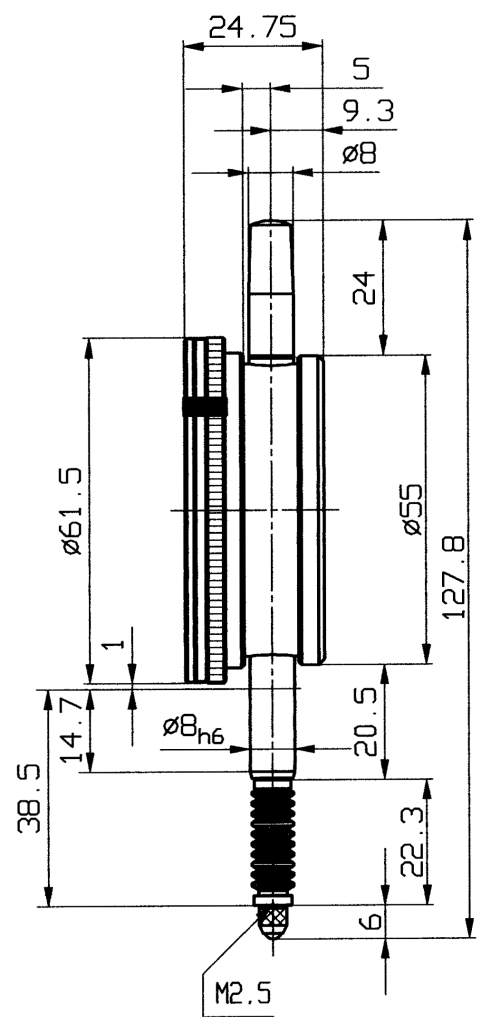

1324 103 - 1324 104: Works standard / Dimensions acc. DIN EN ISO 463
Delivered in a case
! Versions with increased or reduced measuring force, special dials and larger shaft lengths on request.
Dial gauges analog to DIN 878 in box shock, water- and oilproof
| Size: | 3/0,01mm Ø44,5mm |
|---|---|
| Article number: | 1324101 |
| Brand: | KÄFER |
| Manufacturer number: | KM 4 SW |
| Reading: | 0,01mm |
| Measuring range: | 3mm |
| Execution: | Analog to DIN 878 |
| Weight: | 0.2kg |
Alle Varianten
Dial gauges analog to DIN 878 in box
shock, water- and oilproof
3/0,01mm Ø44,5mm
Article number: 1324101
€157.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service
Weight:
0.2kg
EAN / GTIN:
4066918045461
Manufacturer number:
KM 4 SW
Customs code:
90318020
