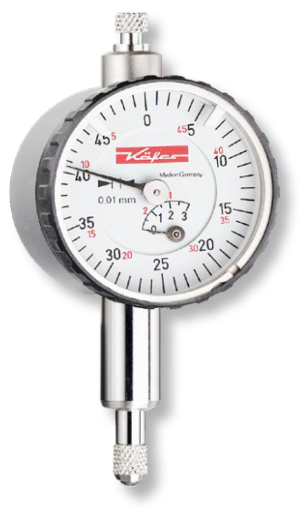

Dial gauges DIN 878 in box

  • DIN 878

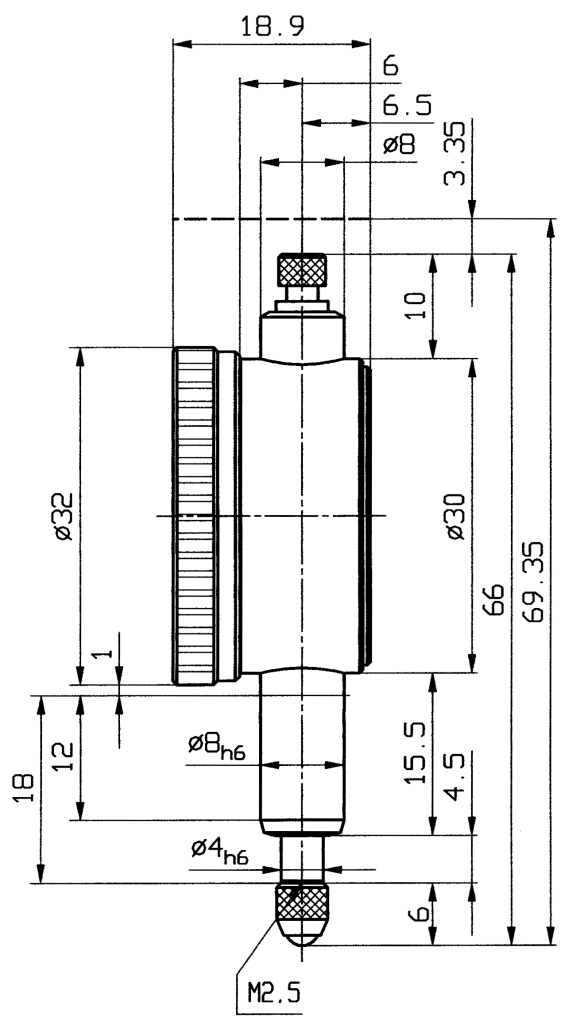

  • Dimensions acc. DIN EN ISO 463 (except L2)
  • Adjustable tolerance marks
  • Clamping shaft Ø 8 mm h6
  • Interchangeable measuring insert M2.5

Delivered in a case

! Versions with increased or reduced measuring force, special dials, larger shaft lengths and models with locking screw or lifting device on request.

Dial gauges DIN 878 in box
Size: 3/0,01mm Ø32mm
Article number: 1321101
Brand: KÄFER
Manufacturer number: KM 6 T
Shock proof: Without
Execution: Metal housing
Measuring range: 3mm
Diameter: 32mm
Weight: 0.18kg

Alle Varianten

Dial gauges DIN 878 in box

3/0,01mm Ø32mm

Article number: 1321101

€97.50*

approx. 1 week
Shipping method: Parcel delivery service Parcel delivery service
Weight: 0.18kg
EAN / GTIN: 4066918044990
Manufacturer number: KM 6 T
Customs code: 90318020
Diameter
Execution
Measuring range
Shock proof
