Concentricity testers ULTRA active with granite bench DIN 876/1, without V blocks 200/650/1100x200mm (14H7)

PROMO - 31.01.2025
incl. packing
Illustration similar ©ULTRA Germany

€4,060.00*

Custom price after Login


Article number: 1554101
Delivery time approx. 1 week
Shipping method: Truck freight Truck freight
Weight: 144.5kg
EAN / GTIN: 4066918059178
Customs code: 90318080
Center distance
Center height
V blocks
Quantity:

Do you need more information?

Login/Register
+49 (0) 6021 42 999 00
mail Created with Sketch Beta. Contact

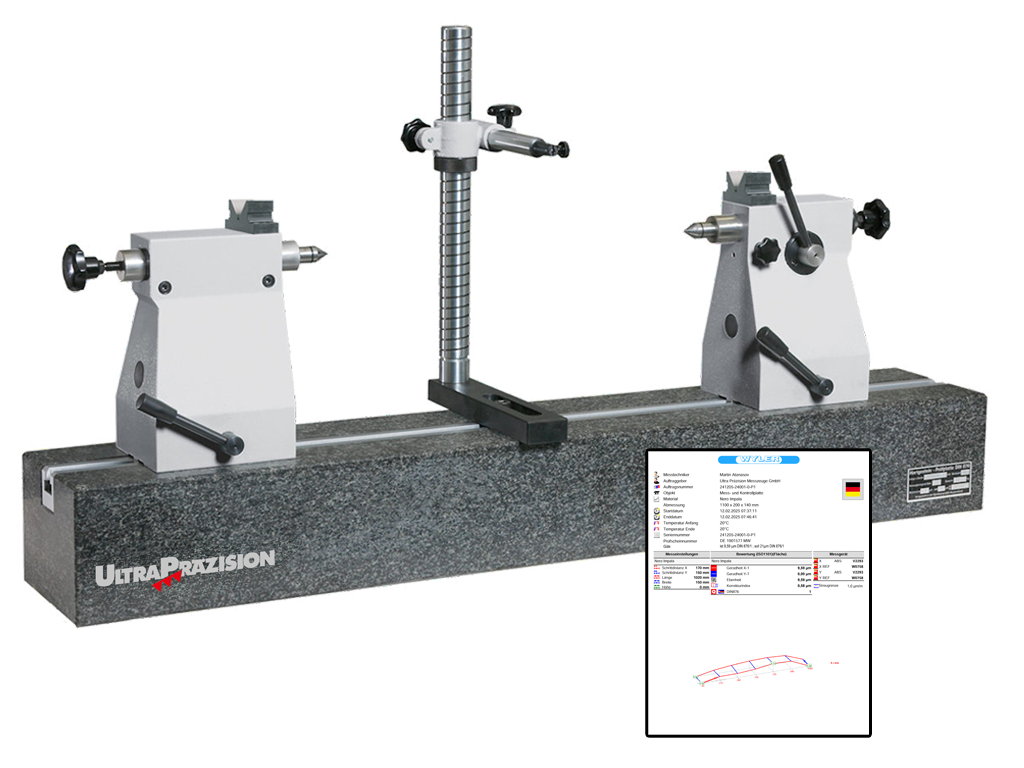

Concentricity testers ULTRA active with granite bench DIN 876/1, without V blocks

  • DIN 876
  • Finely ground measuring faces, grade 1
  • Left tailstock with fixed centre sleeve
  • Right tailstock with movable and lockable centre sleeve
  • Centre points 60°, MK2

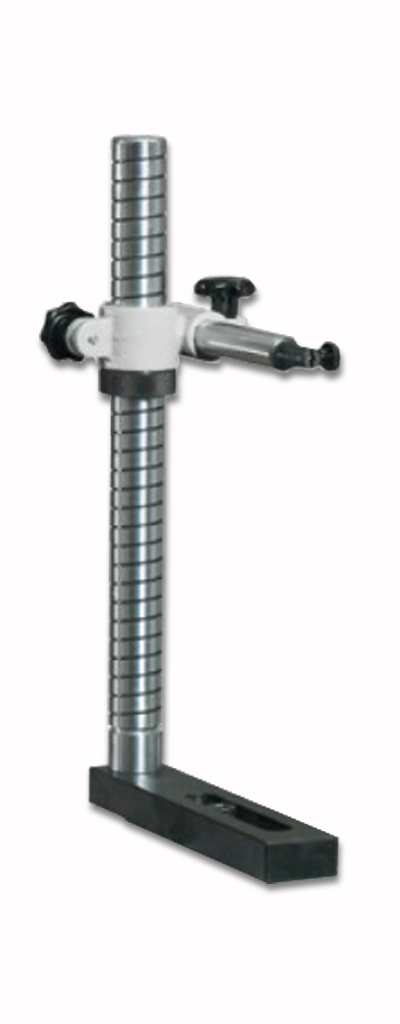

  • Measuring stand with fine adjustment
  • Dial mounting hole Ø 8mm
  • Maximum load tailstock pair 40 kg

1554 1..: Tailstocks without V blocks
1555 1..: Tailstocks with V blocks, hardened

Delivered in individual packages

! Additional stands for multi-point measurement see Accessories menu.

Concentricity testers ULTRA active with granite bench DIN 876/1, without V blocks
Size: 200/650/1100x200mm (14H7)
Article number: 1554101
Brand: ULTRA
V blocks: Without
Center distance: 650mm
Center height: 200mm
Dimension: 1100x200x140mm
T-Slot: 14mm H7
Weight: 144.5kg
