Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical centre lock and micro fine adjustment 288/390mm
€268.00*
Custom price after Login
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |

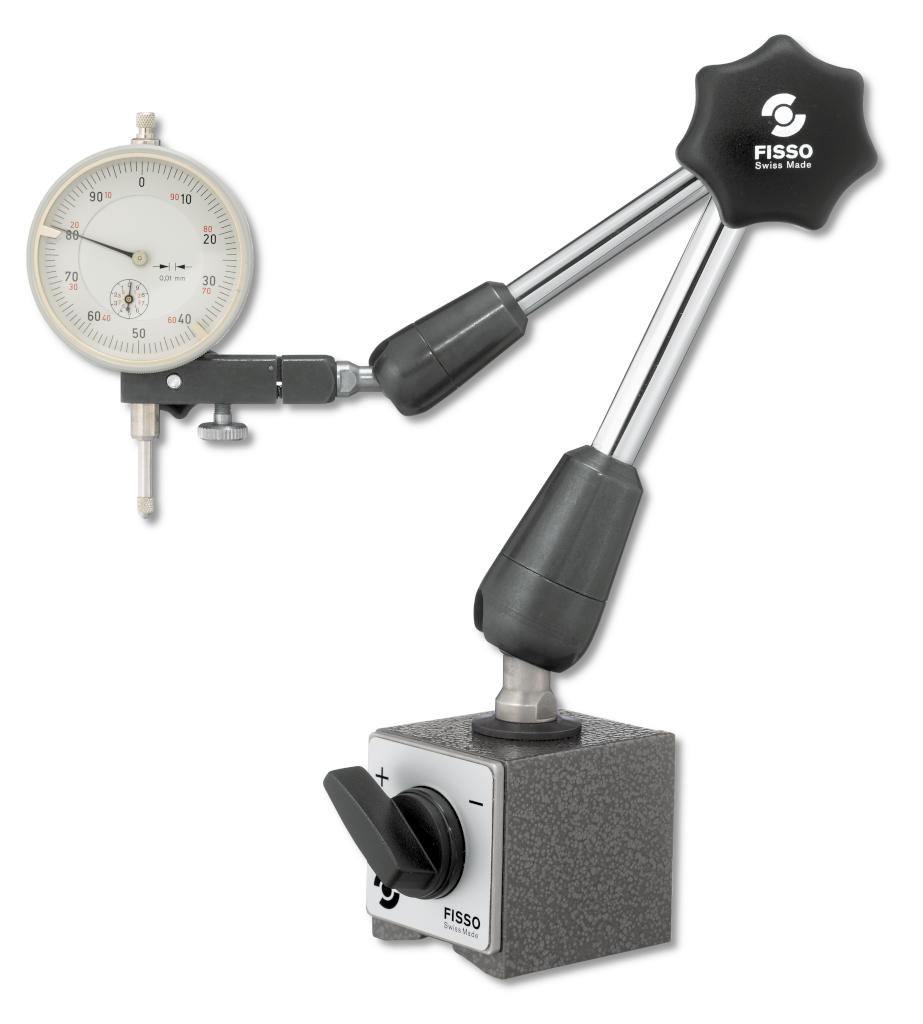

Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical centre lock and micro fine adjustment
- Freely adjustable arm
- Chrome-plated linkage
- Magnetic V base
- Switchable magnet
- Dial mounting hole Ø 8mm
Delivered in individual packages, without dial gauge
Applications:
- The standard Classic model for measurement probes and dial gauges can be used in any type of mechanical system. Pre-tensioning cannot be set.
| Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical centre lock and micro fine adjustment | |
|---|---|
| Size: | 288/390mm |
| Article number: | 1400402 |
| Brand: | FISSO |
| Manufacturer number: | 3328.10 |
| Base: | switch magnet |
| Base dimension: | 60x50x55mm |
| op. range/height: | 288/390mm |
| Height: | 390mm |
| Fine adjustment: | Ø 8mm |
| Adhesive force: | 800N |
| Weight: | 1.85kg |
