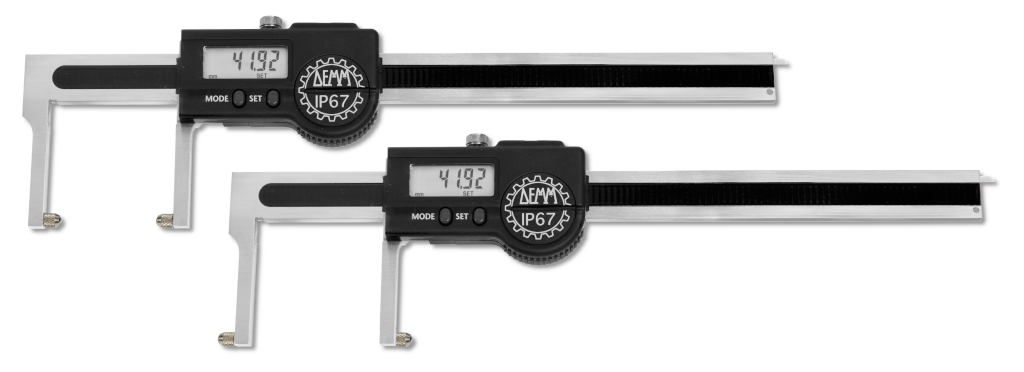

Digital calipers DIGI AFRODITE E inox outside measurement with interchangeable inserts Ø 4,8x6mm 150x42/0,01mm IP67
Illustration similar ©ULTRA Germany
€593.00*
Custom price after Login
Article number:
1854141
Delivery time
approx. 7 weeks
Shipping method:
Parcel delivery service
Weight:
0.17kg
EAN / GTIN:
4066918072092
Manufacturer number:
07072
Customs code:
90173000
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |
Digital calipers DIGI AFRODITE E inox outside measurement with interchangeable inserts Ø 4,8x6mm
- Works standard
- Protection class IP67, Sylvac System
- Locking screw
- Hardened stainless steel
- Large LCD display
- Mounting hole for measuring inserts M2.5
Delivered in a case
Functions:
- On/Off
- Auto-On by sliding
- mm/inch commutation
- Zero setting at any position
- ABS function (fixed 0 point)
- Absolute system
- Preset function ±
- Data output Proximity
| Digital calipers DIGI AFRODITE E inox outside measurement with interchangeable inserts Ø 4,8x6mm | |
|---|---|
| Size: | 150x42/0,01mm IP67 |
| Article number: | 1854141 |
| Brand: | DEMM |
| Manufacturer number: | 07072 |
| Jaw length: | 42mm |
| Measuring range: | 150mm / 6 inch |
| For: | Outside measurement |
| Reading: | 0,01mm / .0005 inch |
| Protection class: | IP67 |
| Material stainless steel: | Hardened |
| Locking screw: | Yes |
| Mounting hole meas. inserts: | M2,5 |
| Accuracy: | 0,02mm |
| Data output: | Proximity |
| Weight: | 0.17kg |
