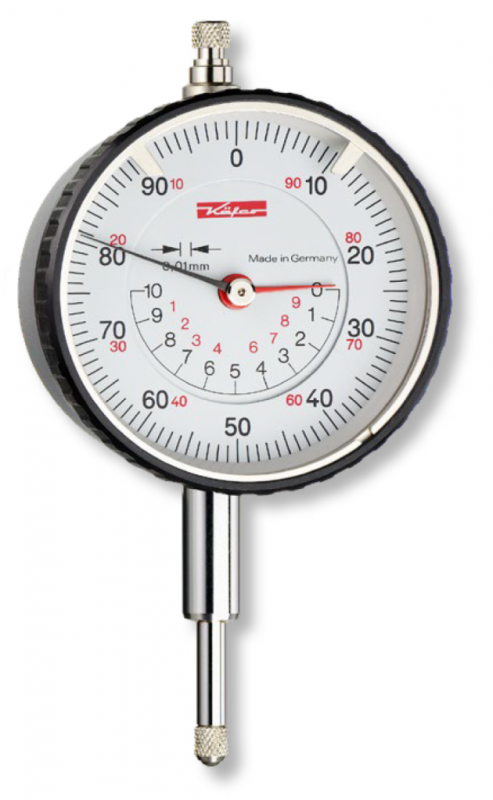

Dial gauges DIN 878 in box Metal housing, outer ring polyamide 10/0,01mm Ø58mm
€47.80*
Custom price after Login
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |
Dial gauges DIN 878 in box Metal housing, outer ring polyamide
- DIN 878
- Dimensions acc. DIN EN ISO 463
- Housing Ø 58 mm
- Adjustable tolerance marks
- Clamping shaft Ø 8 mm h6
- Interchangeable measuring insert M2.5
(Type 1): Metal housing, outer ring polyamide
(Type 2): Metal housing and outer ring
(Type 3): Metal housing, outer ring polyamide with 2 concentric pointers
(Type 4): Polyamide housing and outer ring
Delivery in a case
! Versions with increased or reduced measuring force, special dials, larger shaft lengths and models with locking screw or lifting device on request.
| Dial gauges DIN 878 in box Metal housing, outer ring polyamide | |
|---|---|
| Size: | 10/0,01mm Ø58mm |
| Article number: | 1320101 |
| Brand: | KÄFER |
| Manufacturer number: | M 2 TOP |
| Reading: | 0,01mm |
| Shock proof: | Without |
| Measuring range: | 10mm |
| Execution: | Type 1 |
| 1 pointer rotation: | 1mm |
| Weight: | 0.3kg |
